INA GE100-SX-F10
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

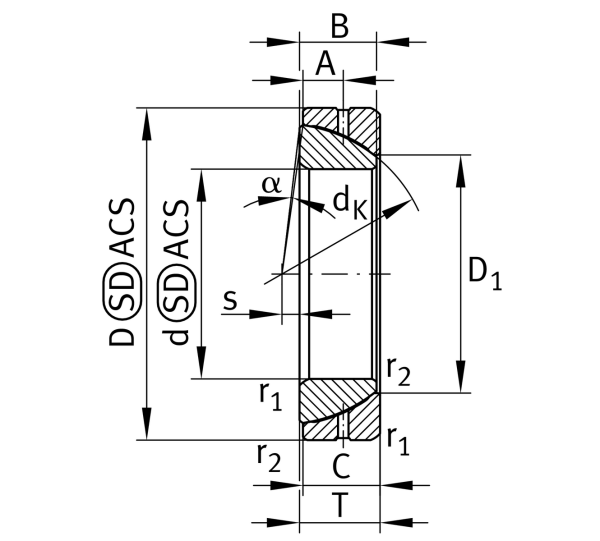

Main Dimensions & Performance Data
d
100 mm
Inner diameter bearing
D
150 mm
Outside diameter bearing
T
32 mm
Height
Cr
441,000 N
Basic dynamic load rating, radial
C0r
1,700,000 N
Basic static load rating, radial
≈m
2.301 kg
Weight

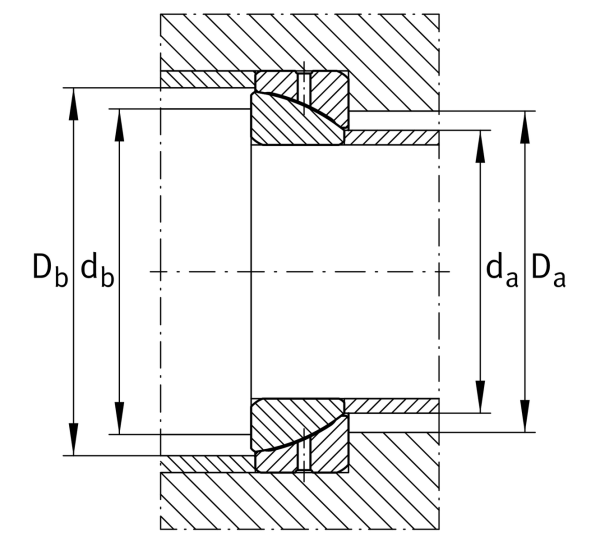

Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
112 mm
Connection measure Inner ring
Da min
123 mm
Housing Connection Diameter
Db min
142 mm
Connection diameter
