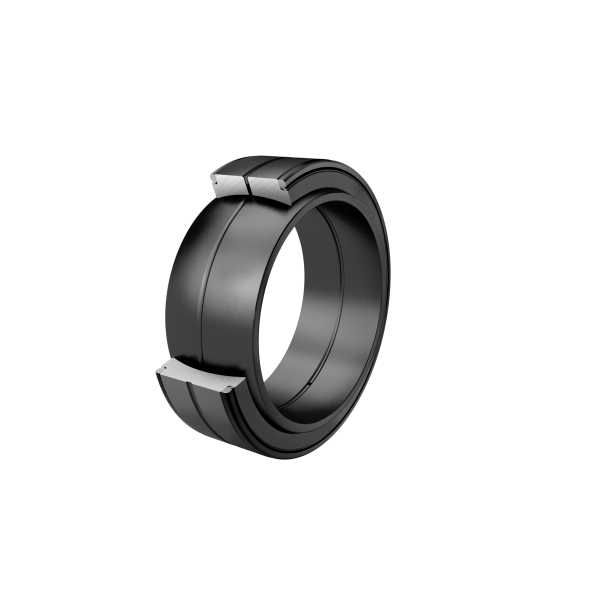

INA GE1000-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
1,000 mm
Bore diameter bearing
D
1,320 mm
Outside diameter bearing
B
438 mm
Width Inner ring
Cr
54,600,000 N
Basic dynamic load rating, radial
C0r
210,000,000 N
Basic static load rating, radial
≈m
1,744 kg
Weight

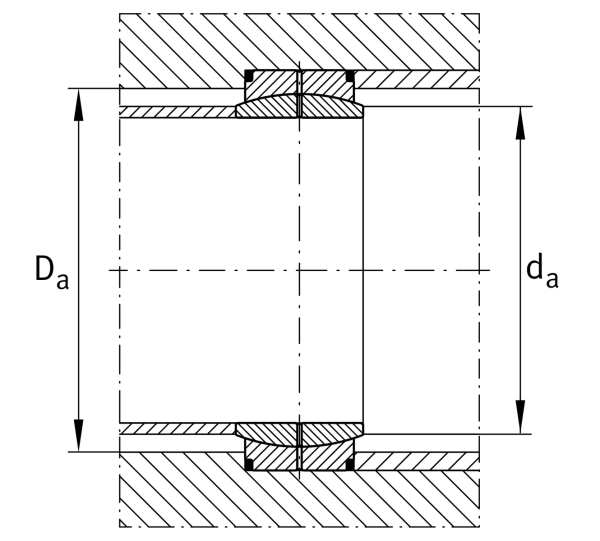

Mounting dimensions
r1smin
4 mm
Edge Spacing
r2smin
7.5 mm
Edge Spacing
da max
1,074.1 mm
Connection measure Inner ring
Da min
1,105 mm
Housing Connection Diameter
