INA GE107-ZO-E
Spherical Plain Bearings
Spherical plain bearing
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
107.95 mm
Bore diameter bearing
D
168.275 mm
Outside diameter bearing
B
94.463 mm
Width Inner ring
Cr
1,000,000 N
Basic dynamic load rating, radial
C0r
5,020,000 N
Basic static load rating, radial
≈m
8.4 kg
Weight

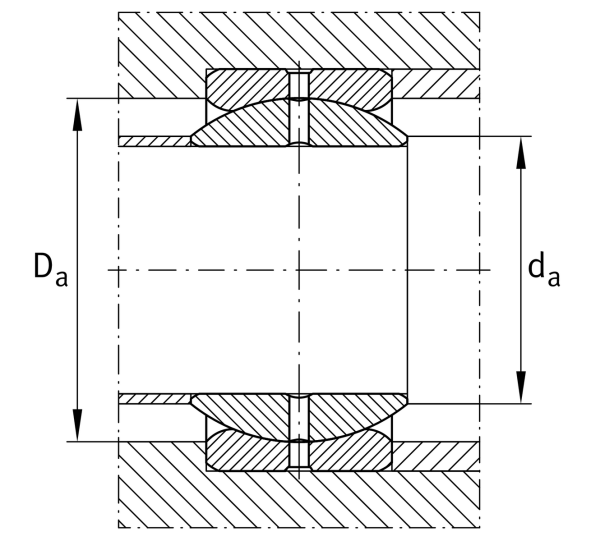

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
122.8 mm
Connection measure Inner ring
Da min
138 mm
Housing Connection Diameter
