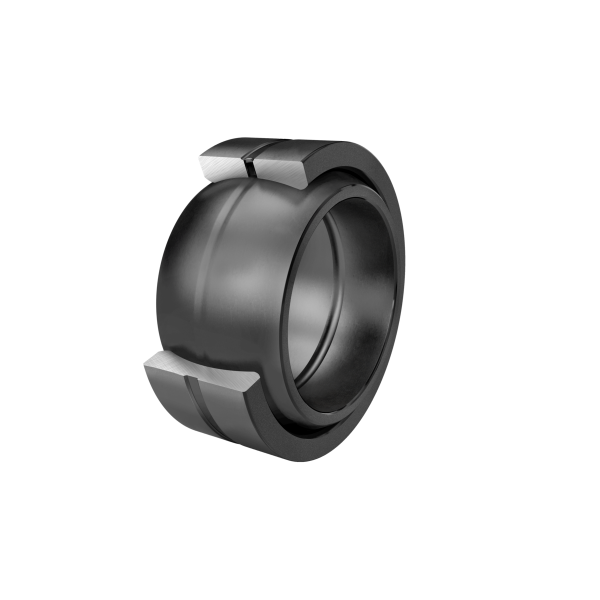

INA GE110-DO-E
Spherical Plain Bearings
Standard performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, open design
(BRAND)：INA
(Availability)：In Stock

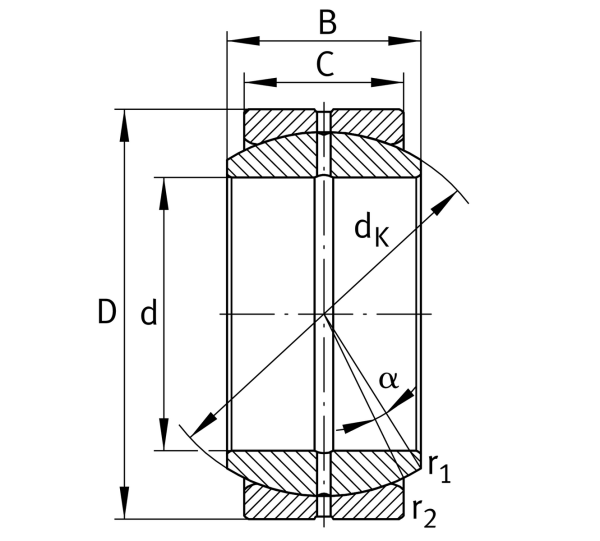

Main Dimensions & Performance Data
d
110 mm
Bore diameter bearing
D
160 mm
Outside diameter bearing
B
70 mm
Width Inner ring
Cr
655,000 N
Basic dynamic load rating, radial
C0r
3,270,000 N
Basic static load rating, radial
≈m
4.71 kg
Weight

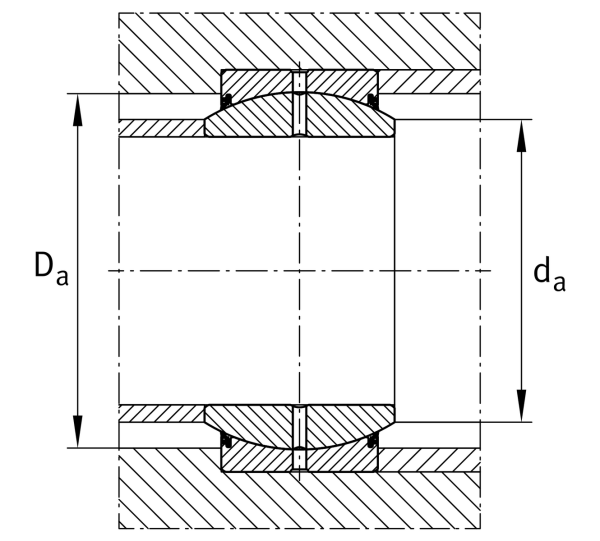

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
121.2 mm
Connection measure Inner ring
Da min
134.6 mm
Housing Connection Diameter
