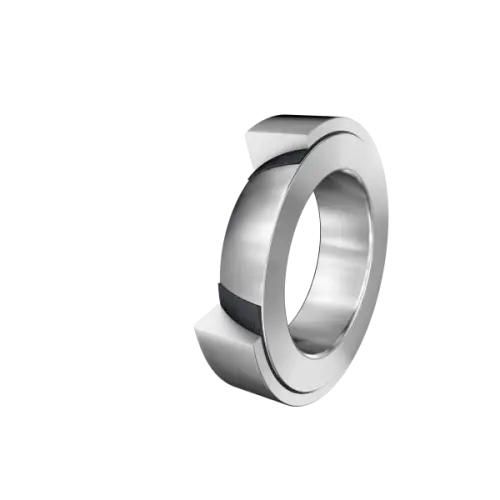

INA GE110-SW
Spherical Plain Bearings

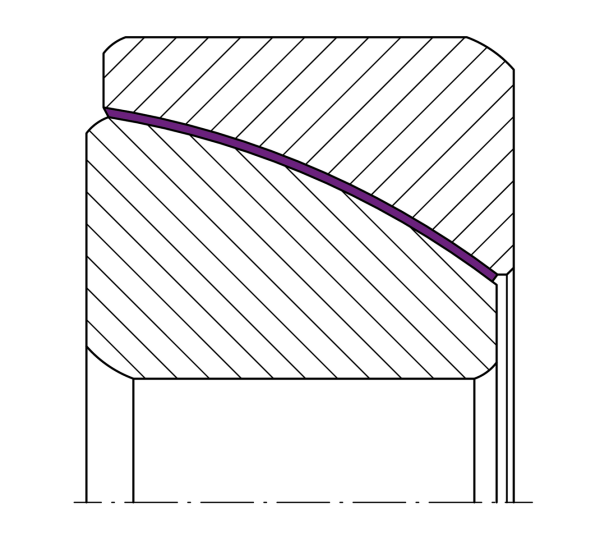

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock

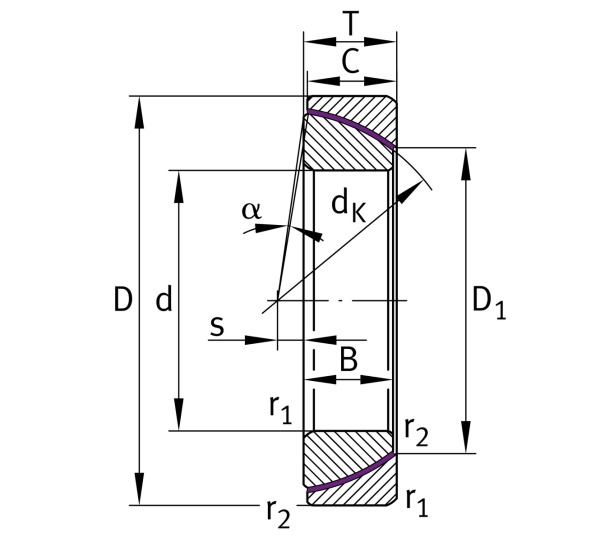

Main Dimensions & Performance Data
d
110 mm
Bore diameter bearing
D
170 mm
Outside diameter bearing
T
38 mm
Height
B
36 mm
Width Inner ring
Cr
1,410,000 N
Basic dynamic load rating, radial
C0r
2,340,000 N
Basic static load rating, radial
≈m
3.778 kg
Weight

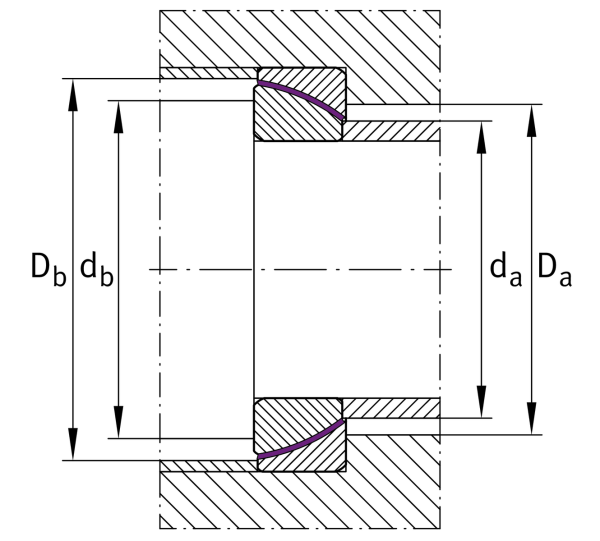

Mounting dimensions
r1smin
2.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
123.2 mm
Connection measure Inner ring
Db min
162 mm
Connection diameter
db max
146 mm
Connection measure Inner ring
Da min
135 mm
Housing Connection Diameter
