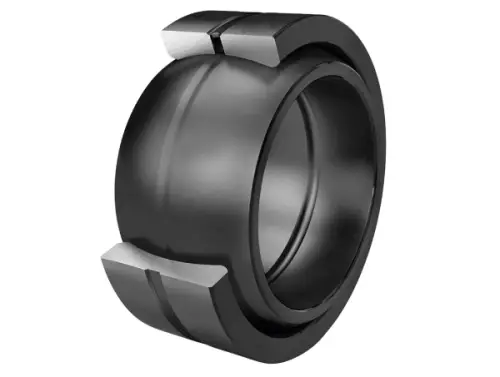

INA GE114-ZO-E
Spherical Plain Bearings
Spherical plain bearing
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
114.3 mm
Bore diameter bearing
D
177.8 mm
Outside diameter bearing
B
100 mm
Width Inner ring
Cr
1,130,000 N
Basic dynamic load rating, radial
C0r
5,640,000 N
Basic static load rating, radial
≈m
9.8 kg
Weight

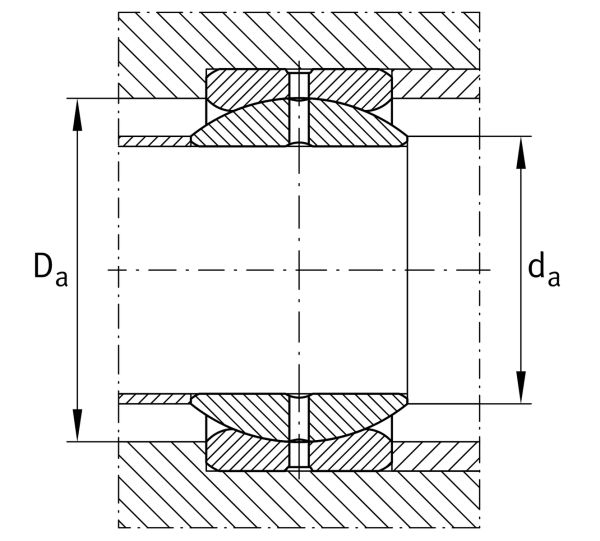

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
130.6 mm
Connection measure Inner ring
Da min
147 mm
Housing Connection Diameter
