INA GE12-AW
Spherical Plain Bearings

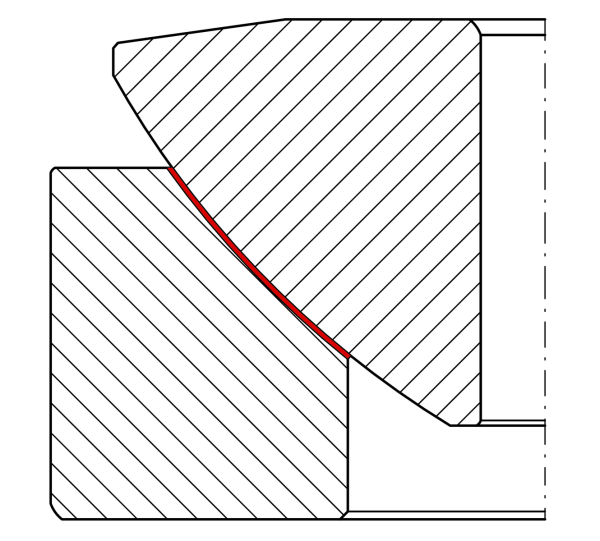

Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
12 mm
Bore diameter bearing
D
35 mm
Outside diameter bearing
T
13 mm
Height
B
9.3 mm
Width Inner ring
Ca
97,300 N
Basic dynamic load rating, axial
C0a
162,000 N
Basic static load rating, axial
≈m
72 g
Weight

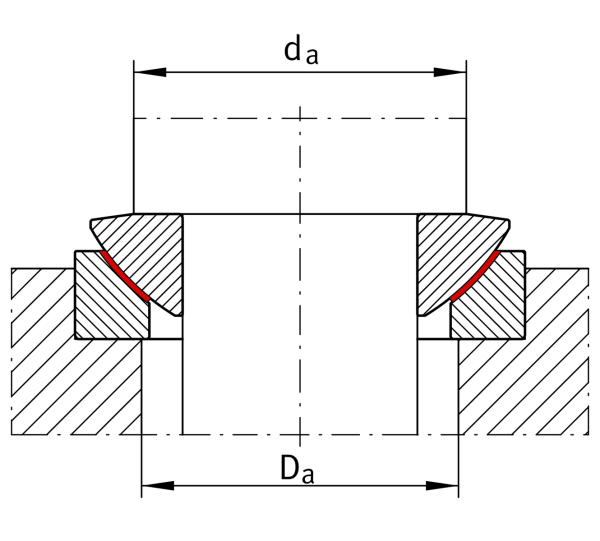

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.2 mm
Edge Spacing
da max
24 mm
Connection measure Inner ring
Da min
21.5 mm
Housing Connection Diameter
