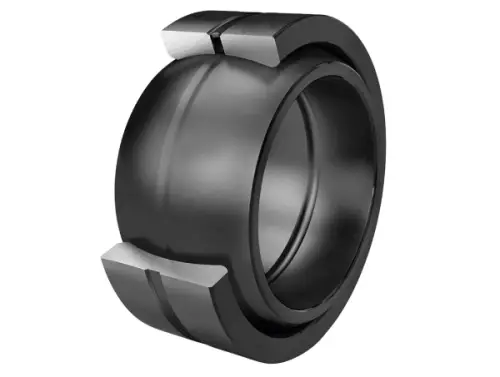

INA GE12-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, open designu00A0High-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

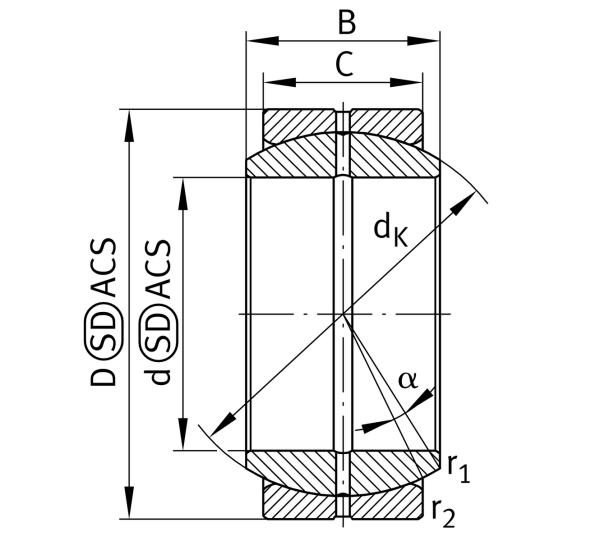

Main Dimensions & Performance Data
d
12 mm
Bore diameter bearing
D
22 mm
Outside diameter bearing
B
10 mm
Width Inner ring
Cr
13,900 N
Basic dynamic load rating, radial
C0r
53,600 N
Basic static load rating, radial
≈m
16.6 g
Weight

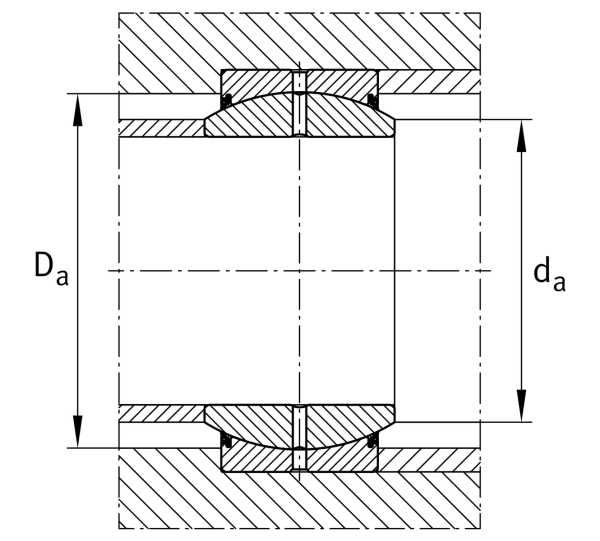

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
14.9 mm
Connection measure Inner ring
Da min
17.5 mm
Housing Connection Diameter
