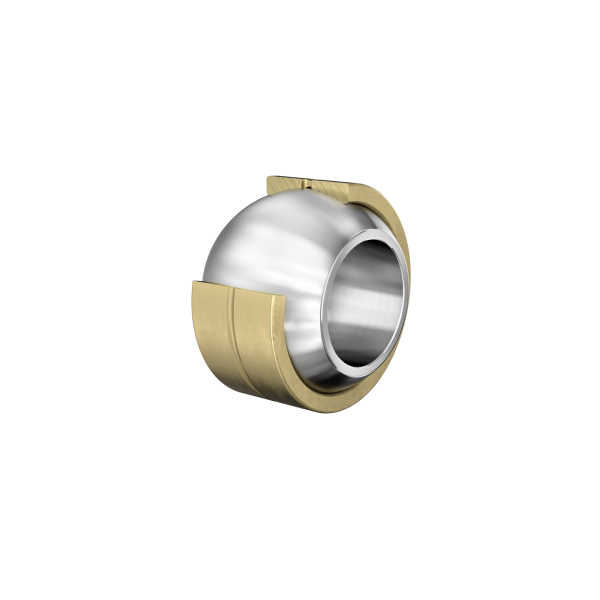

INA GE12-PB
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-1, dimension series K, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

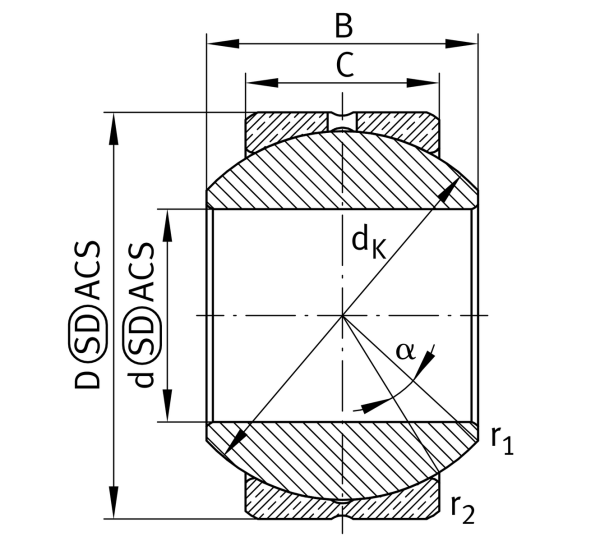

Main Dimensions & Performance Data
d
12 mm
Bore diameter bearing
D
26 mm
Outside diameter bearing
B
16 mm
Width Inner ring
Cr
13,300 N
Basic dynamic load rating, radial
C0r
33,300 N
Basic static load rating, radial
≈m
43.7 g
Weight
Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
15.4 mm
Connection measure Inner ring
Da min
19.5 mm
Housing Connection Diameter
