INA GE12-PW
Spherical Plain Bearings

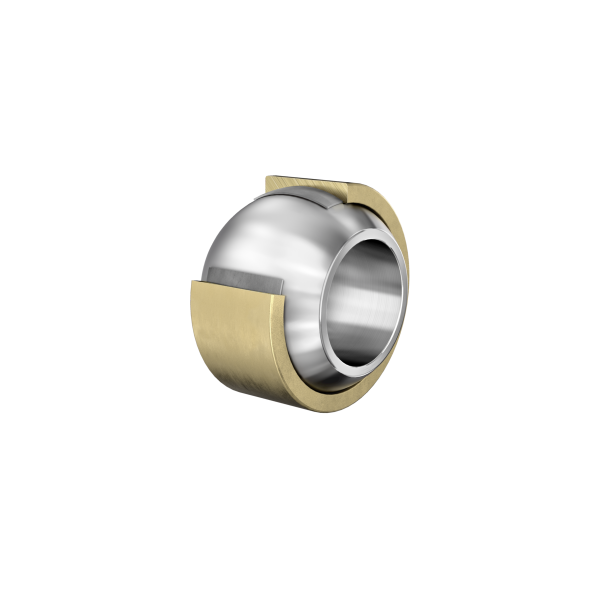

Radial spherical plain bearing, maintenance-free, sliding layer: PTFE film, brass outer ring, DIN ISO 12240-1, dimension series K, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

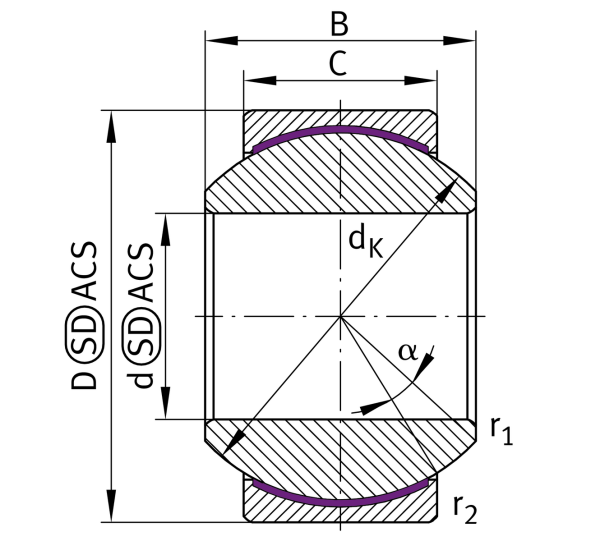

Main Dimensions & Performance Data
d
12 mm
Bore diameter bearing
D
26 mm
Outside diameter bearing
B
16 mm
Width Inner ring
C
12 mm
Width Outer ring
Cr
24,000 N
Basic dynamic load rating, radial
C0r
60,000 N
Basic static load rating, radial
≈m
43 g
Weight

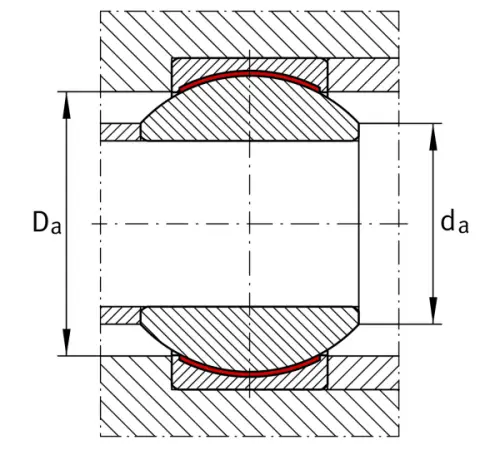

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
Damin
19.5 mm
Housing Connection Diameter
damax
15.4 mm
Connection measurement, inner ring
