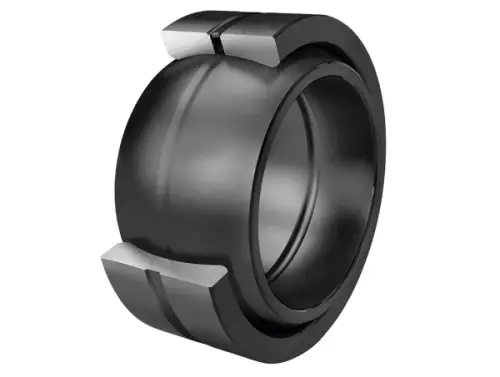

INA GE12-ZO-E
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, inch size, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

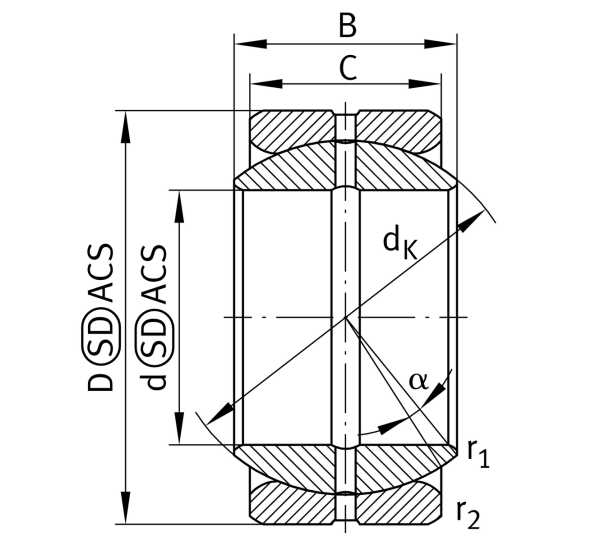

Main Dimensions & Performance Data
d
12.7 mm
Bore diameter bearing
D
22.225 mm
Outside diameter bearing
B
11.1 mm
Width Inner ring
Cr
13,700 N
Basic dynamic load rating, radial
C0r
68,600 N
Basic static load rating, radial
≈m
0.022 kg
Weight

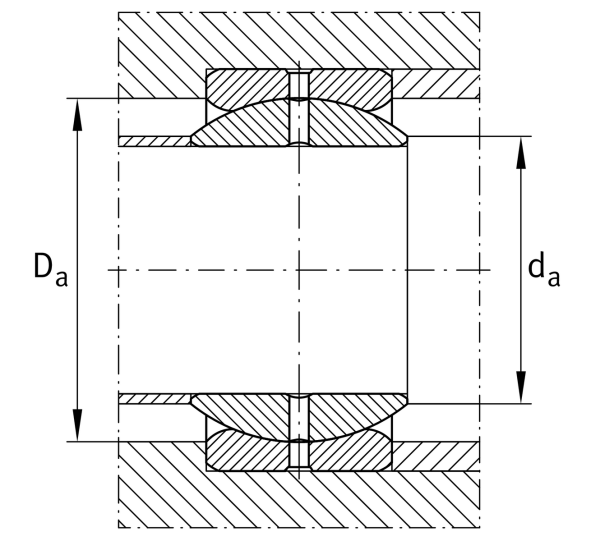

Mounting dimensions
r1smin
0.15 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
14.1 mm
Connection measure Inner ring
Da min
22 mm
Housing Connection Diameter
