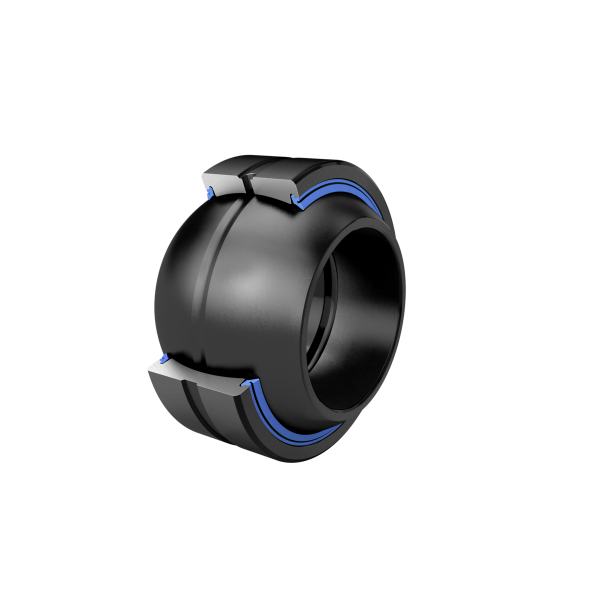

INA GE120-FO-2RS-E
Spherical Plain Bearings
Standard performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series G, sealed
(BRAND)：INA
(Availability)：In Stock

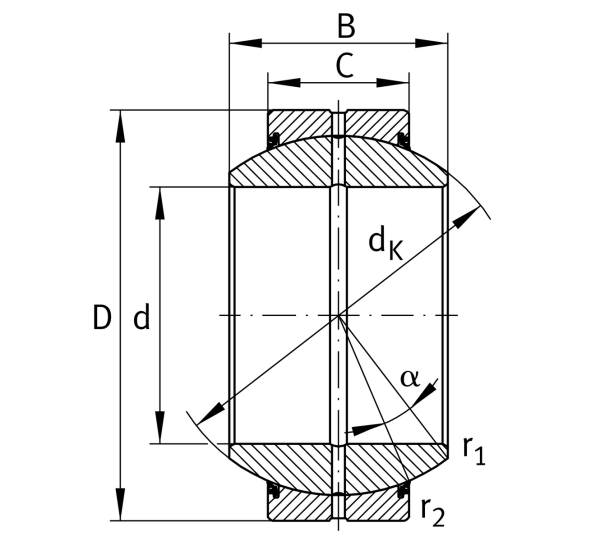

Main Dimensions & Performance Data
d
120 mm
Bore diameter bearing
D
210 mm
Outside diameter bearing
B
115 mm
Width Inner ring
Cr
1,070,000 N
Basic dynamic load rating, radial
C0r
5,360,000 N
Basic static load rating, radial
≈m
15.1 kg
Weight
Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
138.4 mm
Connection measure Inner ring
Da min
174 mm
Housing Connection Diameter
