INA GE120-SX-F10
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

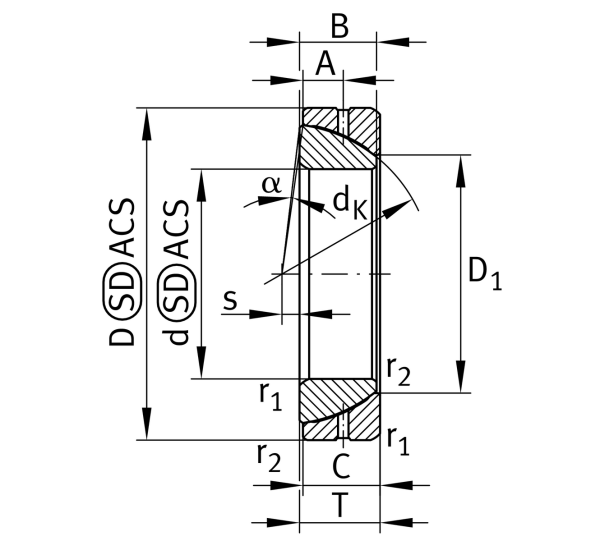

Main Dimensions & Performance Data
d
120 mm
Inner diameter bearing
D
180 mm
Outside diameter bearing
T
38 mm
Height
Cr
649,000 N
Basic dynamic load rating, radial
C0r
2,490,000 N
Basic static load rating, radial
≈m
4.06 kg
Weight

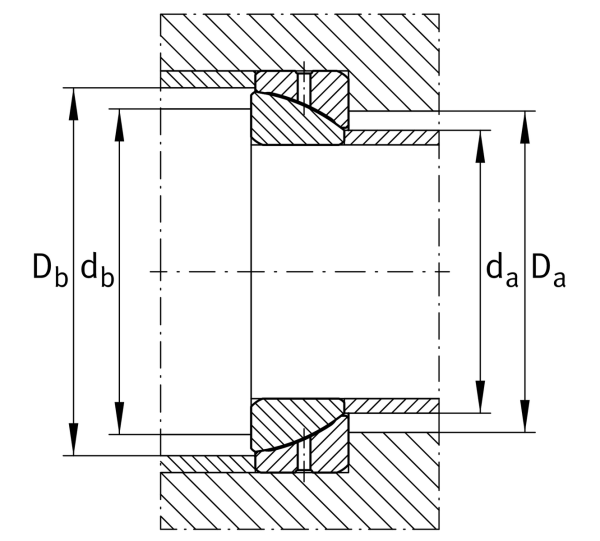

Mounting dimensions
r1smin
2.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
132.9 mm
Connection measure Inner ring
Da min
145 mm
Housing Connection Diameter
Db min
172 mm
Connection diameter
