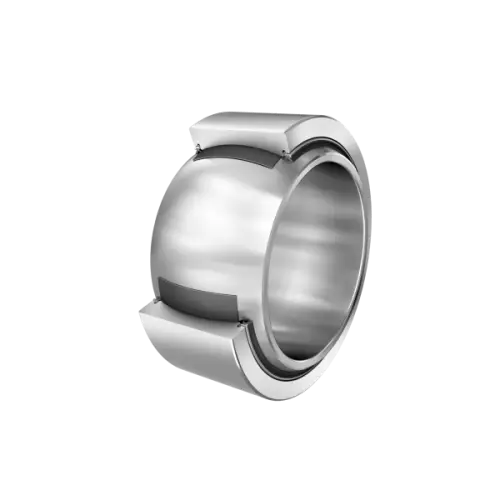

INA GE120-UK-2RS
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, sealed
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
120 mm
Bore diameter bearing
D
180 mm
Outside diameter bearing
B
85 mm
Width Inner ring
C
70 mm
Width Outer ring
Cr
2,690,000 N
Basic dynamic load rating, radial
C0r
4,480,000 N
Basic static load rating, radial
≈m
7.88 kg
Weight
Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
Damin
150 mm
Housing Connection Diameter
damax
135.5 mm
Connection measurement, inner ring
