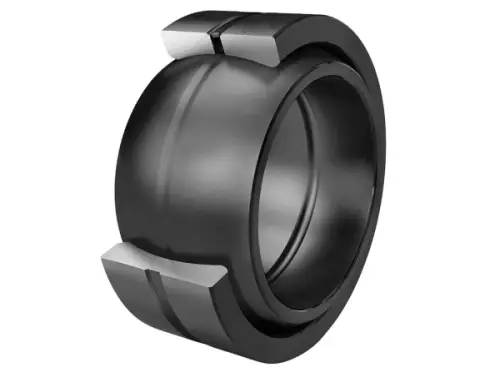

INA GE120-ZO-E
Spherical Plain Bearings
Spherical plain bearing
(BRAND)：INA
(Availability)：In Stock

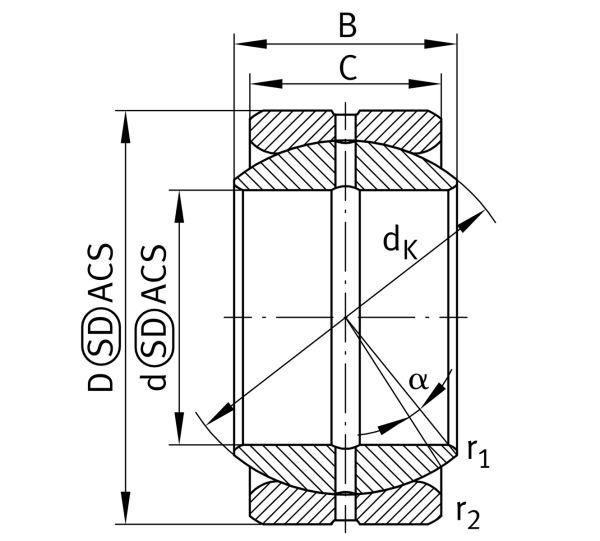

Main Dimensions & Performance Data
d
120.65 mm
Bore diameter bearing
D
187.325 mm
Outside diameter bearing
B
105.562 mm
Width Inner ring
Cr
1,470,000 N
Basic dynamic load rating, radial
C0r
7,330,000 N
Basic static load rating, radial
≈m
11.5 kg
Weight

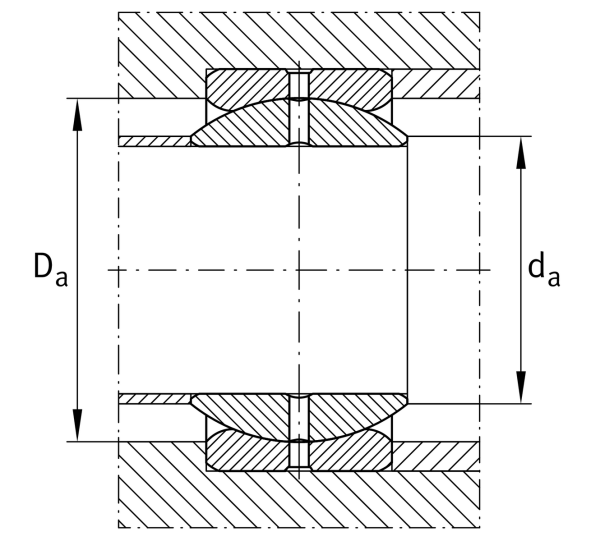

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
137.6 mm
Connection measure Inner ring
Da min
155 mm
Housing Connection Diameter
