INA GE127-ZO-E

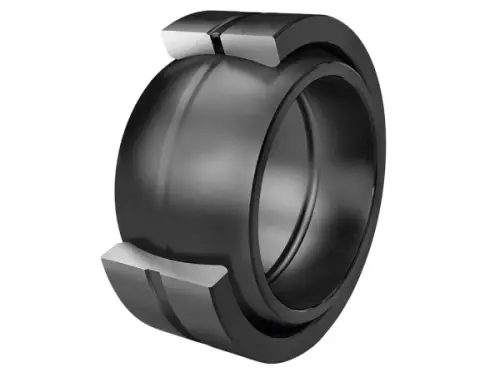

Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, inch size, open design
(BRAND)：INA
(Availability)：In Stock

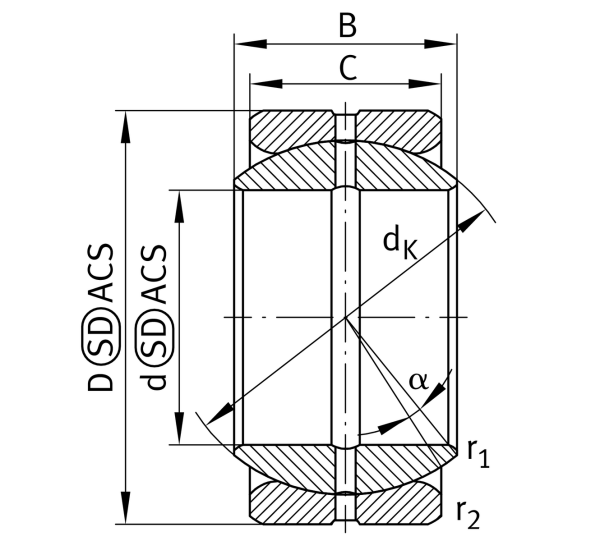

Main Dimensions & Performance Data
d
127 mm
Bore diameter bearing
D
196.85 mm
Outside diameter bearing
B
111.125 mm
Width Inner ring
Cr
1,390,000 N
Basic dynamic load rating, radial
C0r
6,970,000 N
Basic static load rating, radial
≈m
13.5 kg
Weight

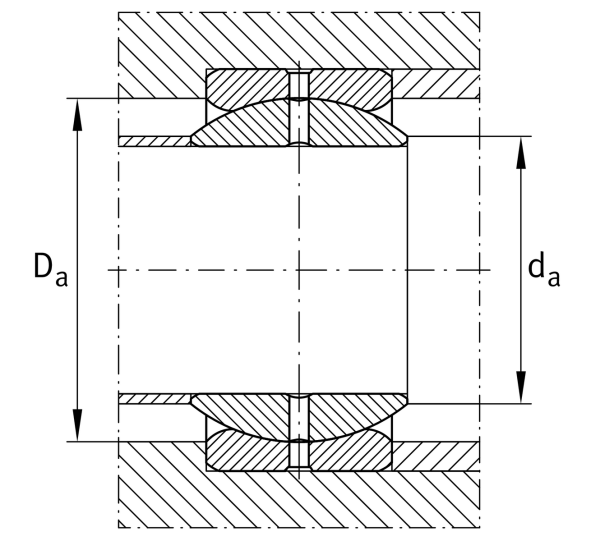

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
145.3 mm
Connection measure Inner ring
Da min
163 mm
Housing Connection Diameter
