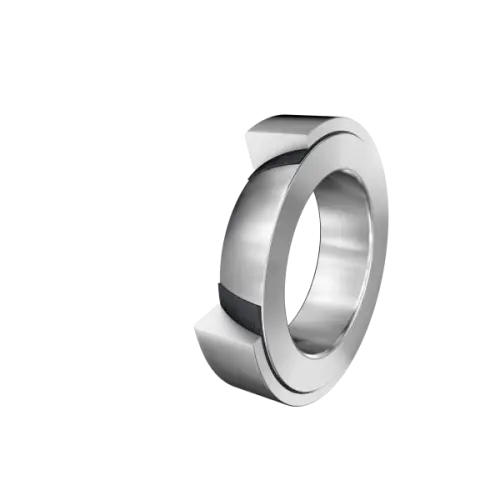

INA GE130-SW
Spherical Plain Bearings

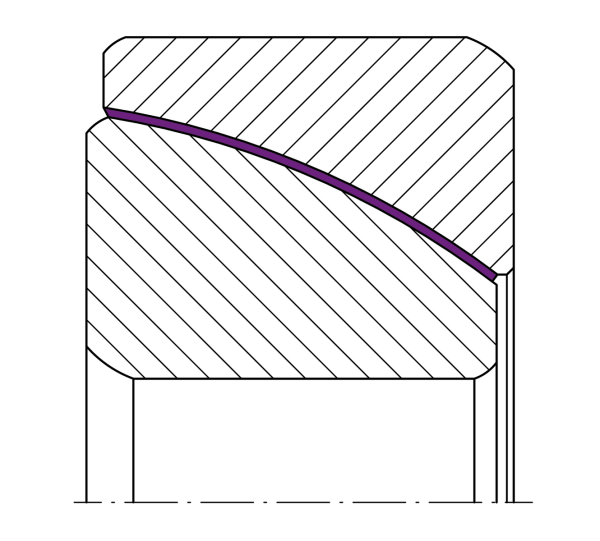

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock

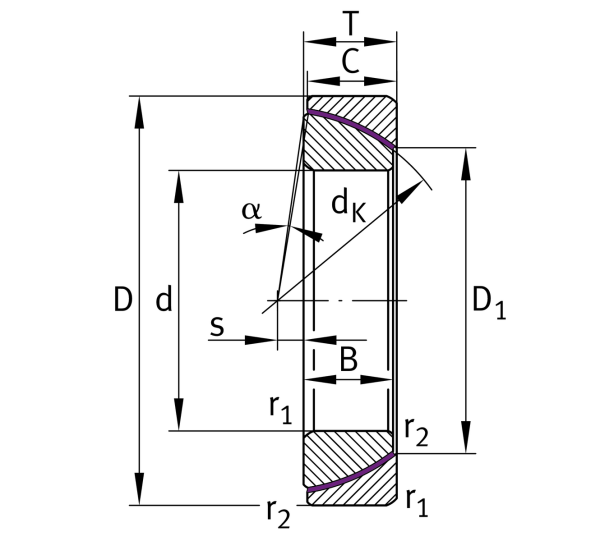

Main Dimensions & Performance Data
d
130 mm
Bore diameter bearing
D
200 mm
Outside diameter bearing
T
45 mm
Height
B
42 mm
Width Inner ring
Cr
1,870,000 N
Basic dynamic load rating, radial
C0r
3,110,000 N
Basic static load rating, radial
≈m
6.2 kg
Weight

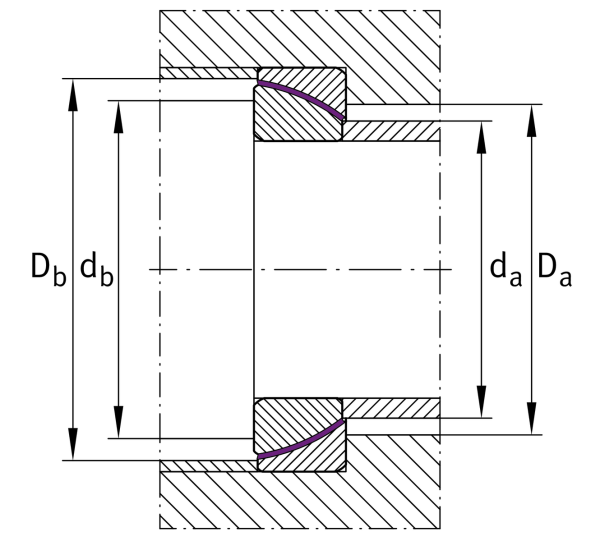

Mounting dimensions
r1smin
2.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
144 mm
Connection measure Inner ring
Db min
192 mm
Connection diameter
db max
174 mm
Connection measure Inner ring
Da min
158 mm
Housing Connection Diameter
