INA GE130-SX
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock

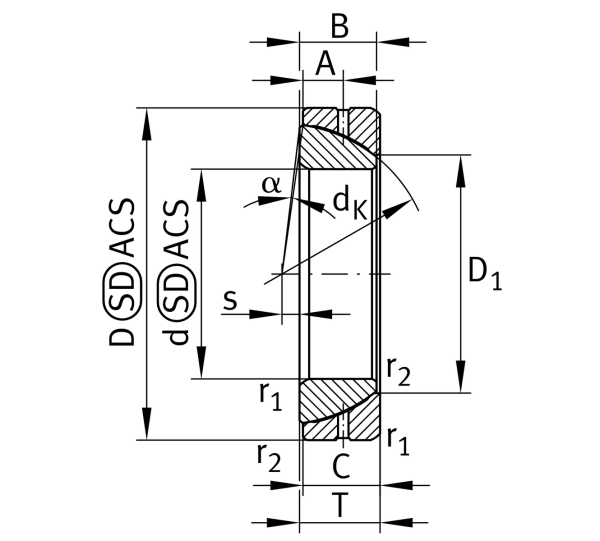

Main Dimensions & Performance Data
d
130 mm
Inner diameter bearing
D
200 mm
Outside diameter bearing
T
45 mm
Height
Cr
809,000 N
Basic dynamic load rating, radial
C0r
3,110,000 N
Basic static load rating, radial
≈m
6.2 kg
Weight
Mounting dimensions
r1smin
2.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
144 mm
Connection measure Inner ring
Da min
158 mm
Housing Connection Diameter
Db min
192 mm
Connection diameter
