INA GE14-PB
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-1, dimension series K, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

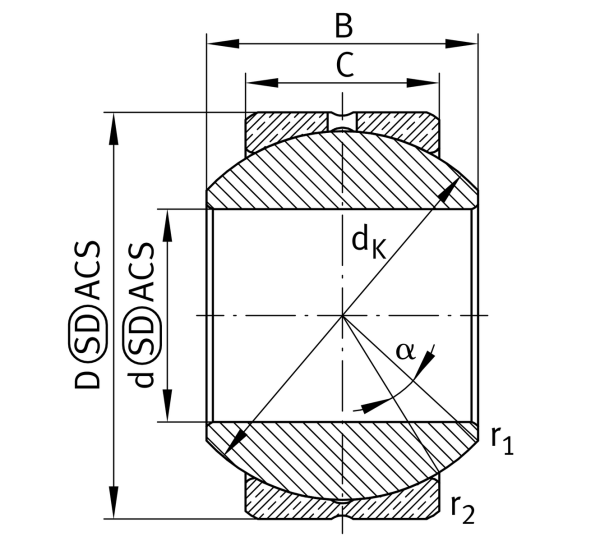

Main Dimensions & Performance Data
d
14 mm
Bore diameter bearing
D
28 mm
Outside diameter bearing
B
19 mm
Width Inner ring
Cr
17,100 N
Basic dynamic load rating, radial
C0r
42,900 N
Basic static load rating, radial
≈m
55.27 g
Weight

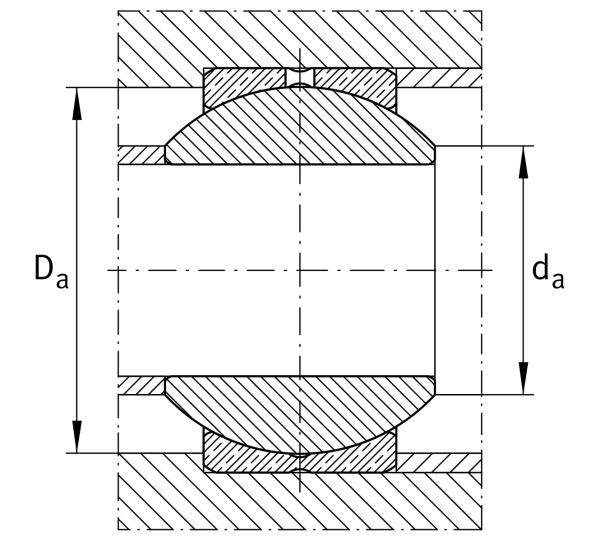

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
16.8 mm
Connection measure Inner ring
Da min
22.5 mm
Housing Connection Diameter
