INA GE140-AW
Spherical Plain Bearings

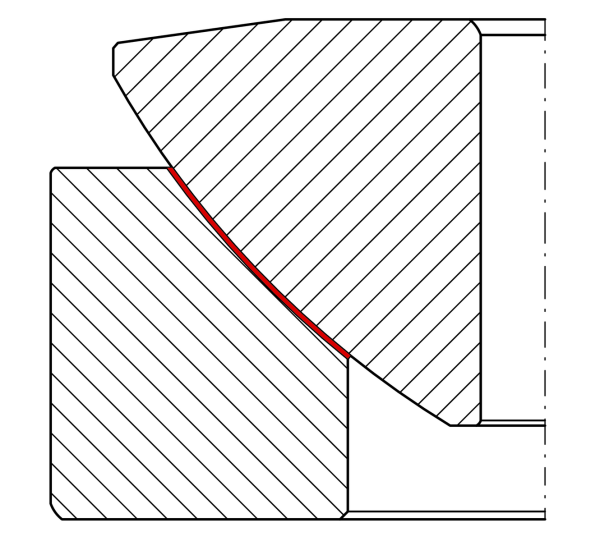

Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
140 mm
Bore diameter bearing
D
260 mm
Outside diameter bearing
T
72 mm
Height
B
61 mm
Width Inner ring
Ca
4,900,000 N
Basic dynamic load rating, axial
C0a
8,170,000 N
Basic static load rating, axial
≈m
19.3 kg
Weight

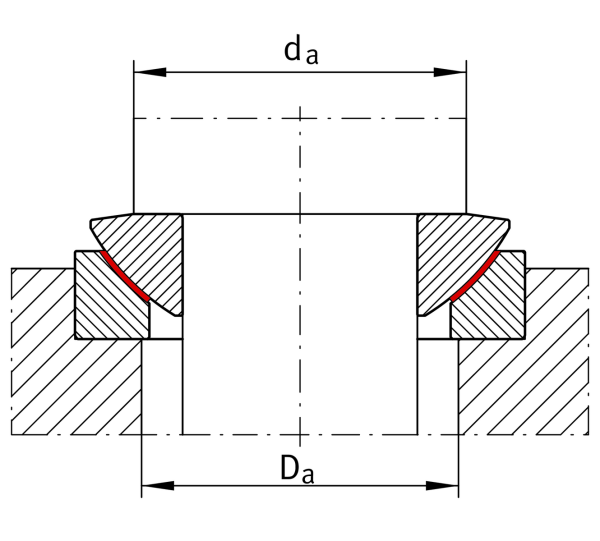

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
198 mm
Connection measure Inner ring
Da min
187 mm
Housing Connection Diameter
