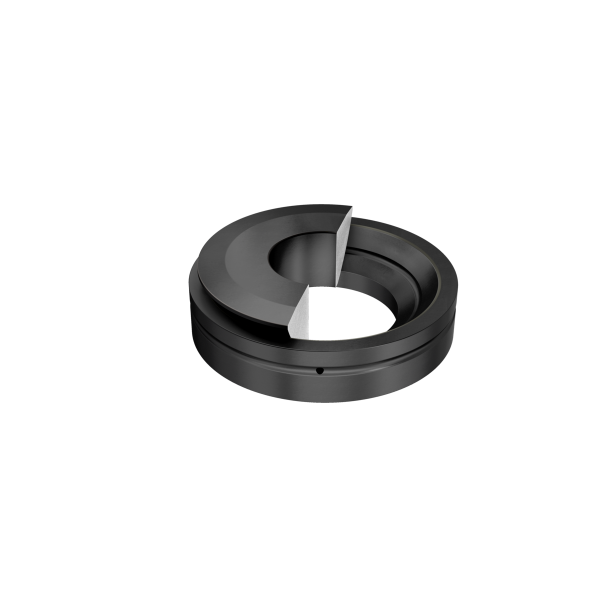

INA GE140-AX
Spherical Plain Bearings
Axial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel
(BRAND)：INA
(Availability)：In Stock

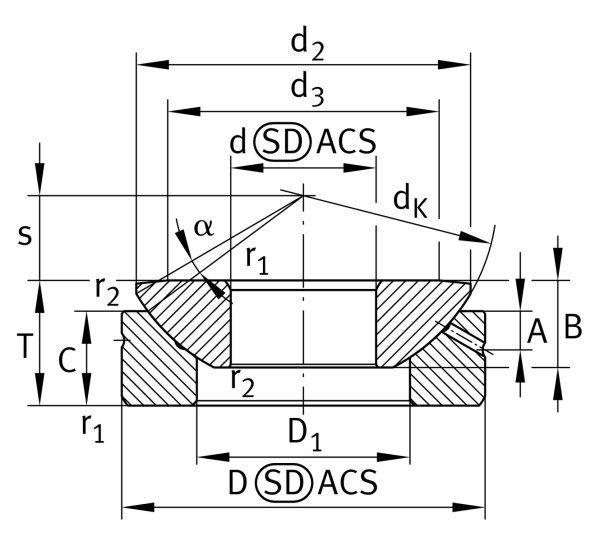

Main Dimensions & Performance Data
d
140 mm
Inner diameter bearing
D
260 mm
Outside diameter bearing
T
72 mm
Height
Ca
2,120,000 N
Basic dynamic load rating, axial
C0a
8,170,000 N
Basic static load rating, axial
≈m
18.8 kg
Weight
Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
198 mm
Connection measure Inner ring
Da min
187 mm
Housing Connection Diameter
