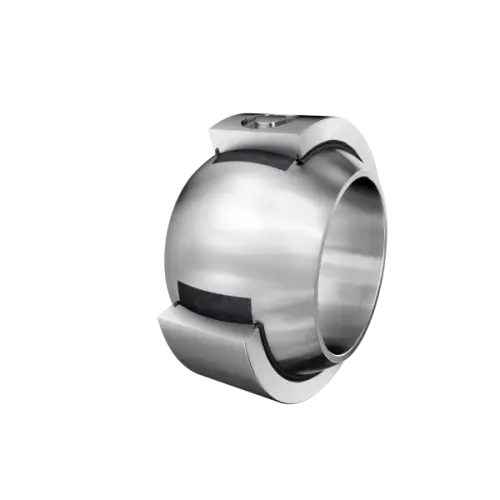

INA GE140-FW-2TS-W11
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

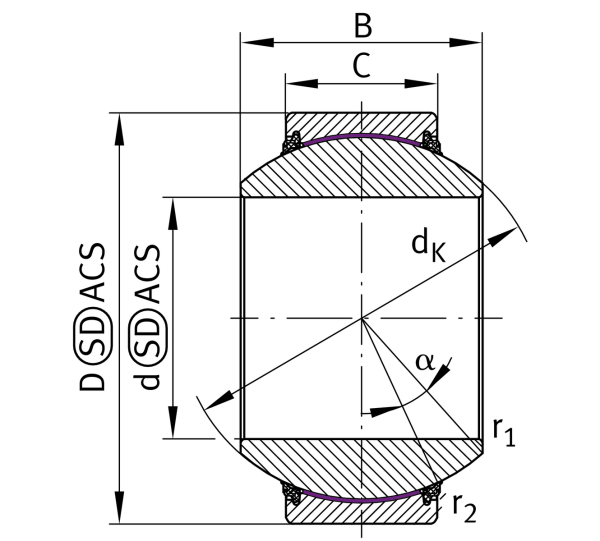

Main Dimensions & Performance Data
d
140 mm
Bore diameter bearing
D
230 mm
Outside diameter bearing
B
130 mm
Width Inner ring
C
80 mm
Width Outer ring
Cr
3,840,000 N
Basic dynamic load rating, radial
C0r
6,400,000 N
Basic static load rating, radial
≈m
18.82 kg
Weight

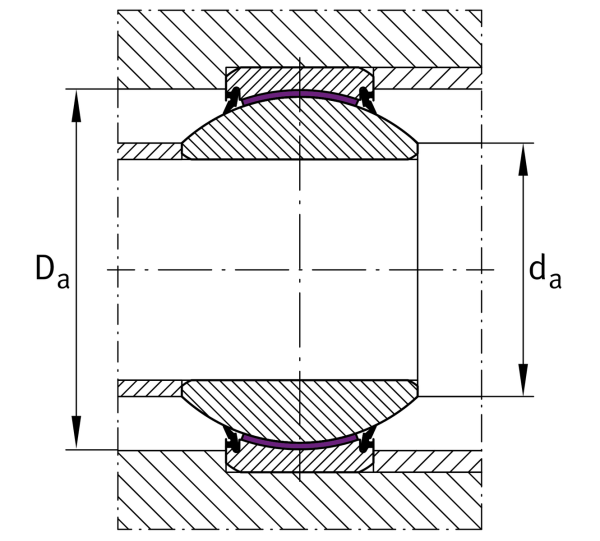

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
Damin
191 mm
Housing Connection Diameter
damax
151.9 mm
Connection measurement, inner ring
