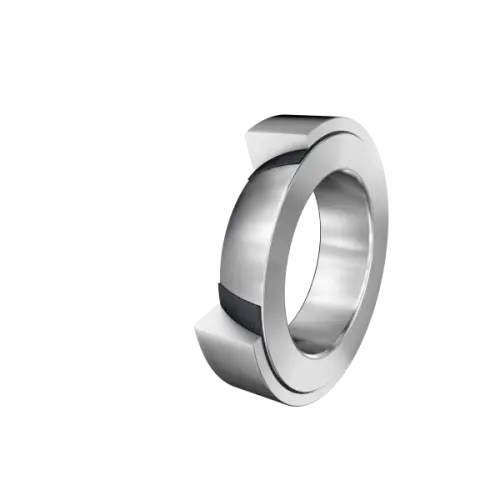

INA GE140-SW
Spherical Plain Bearings

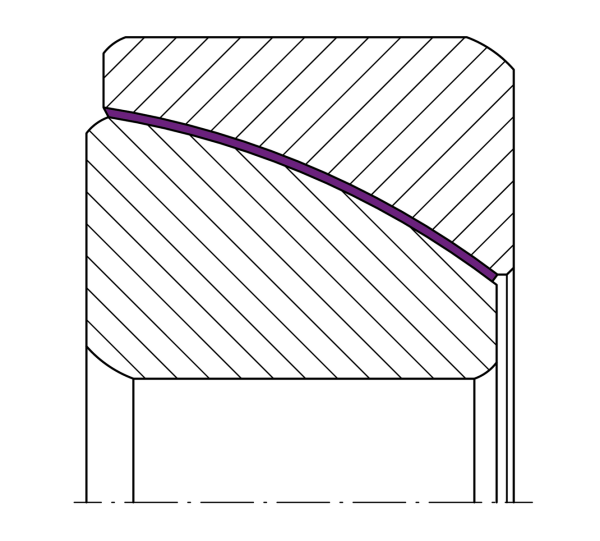

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock

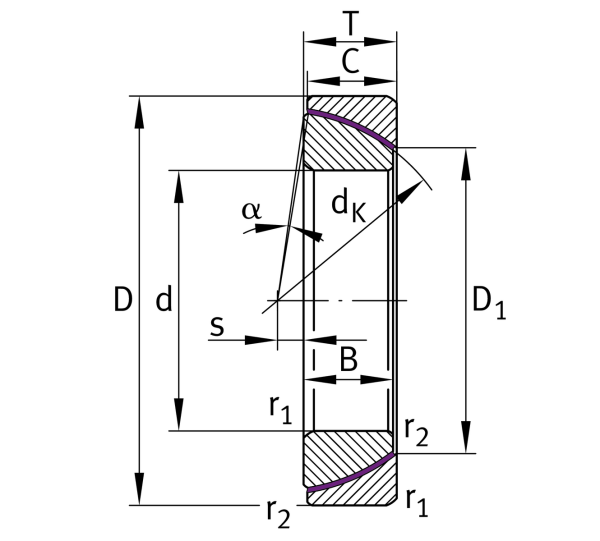

Main Dimensions & Performance Data
d
140 mm
Bore diameter bearing
D
210 mm
Outside diameter bearing
T
45 mm
Height
B
42 mm
Width Inner ring
Cr
1,990,000 N
Basic dynamic load rating, radial
C0r
3,320,000 N
Basic static load rating, radial
≈m
6.482 kg
Weight

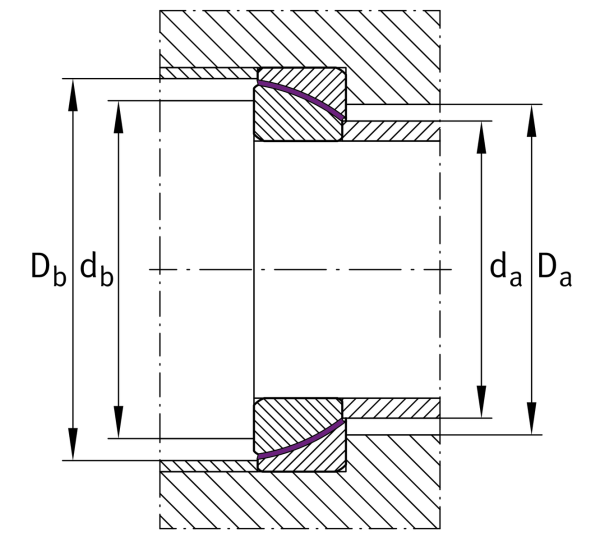

Mounting dimensions
r1smin
2.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
156.9 mm
Connection measure Inner ring
Db min
202 mm
Connection diameter
db max
184 mm
Connection measure Inner ring
Da min
171 mm
Housing Connection Diameter
