INA GE15-FO-2RS
Spherical Plain Bearings
High performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series G, sealedHigh-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

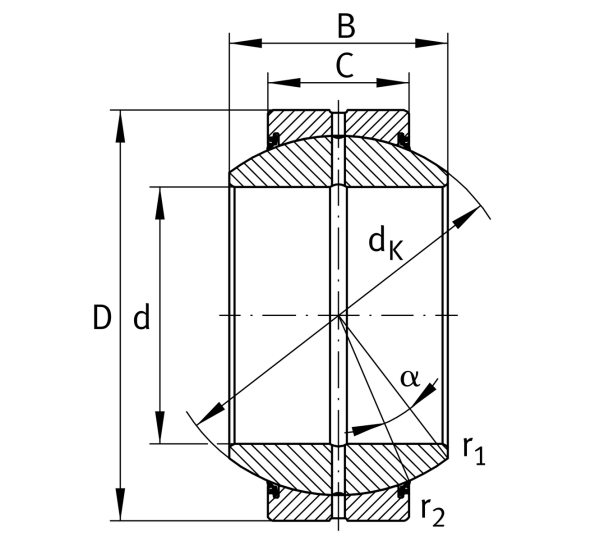

Main Dimensions & Performance Data
d
15 mm
Bore diameter bearing
D
30 mm
Outside diameter bearing
B
16 mm
Width Inner ring
Cr
27,600 N
Basic dynamic load rating, radial
C0r
106,000 N
Basic static load rating, radial
≈m
45.424 g
Weight

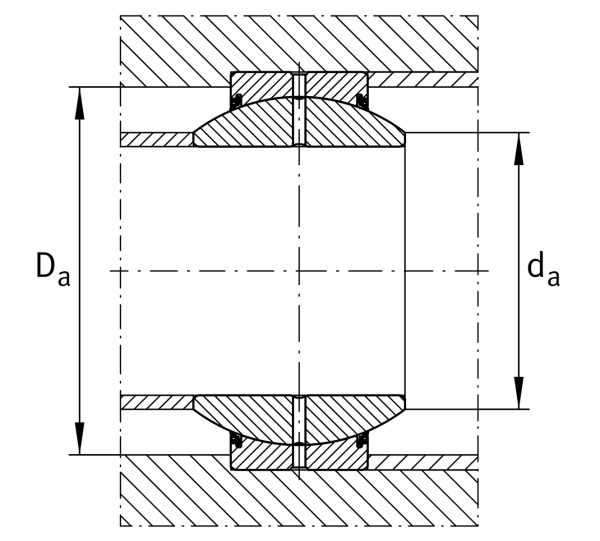

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
19.2 mm
Connection measure Inner ring
Da min
24 mm
Housing Connection Diameter
