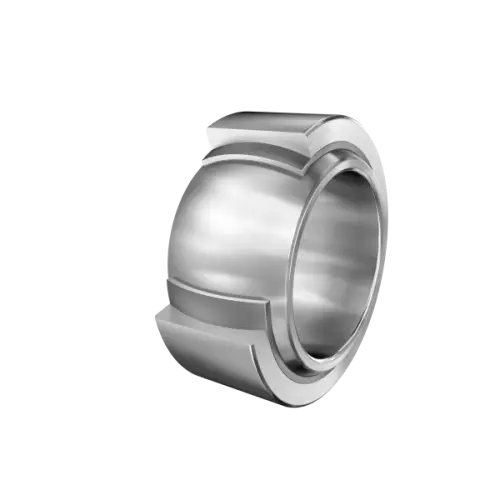

INA GE15-FW
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

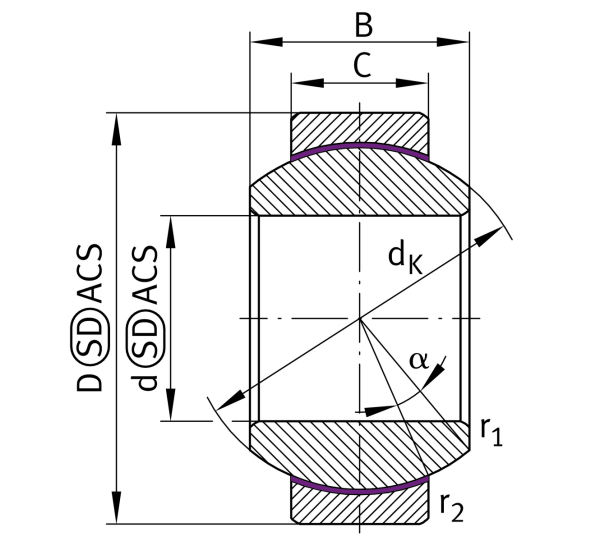

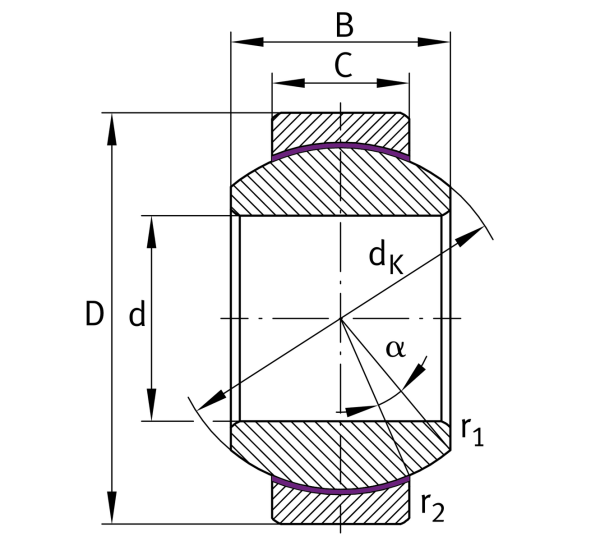

Main Dimensions & Performance Data
d
15 mm
Bore diameter bearing
D
30 mm
Outside diameter bearing
B
16 mm
Width Inner ring
C
10 mm
Width Outer ring
Cr
22,500 N
Basic dynamic load rating, radial
C0r
56,300 N
Basic static load rating, radial
≈m
0.045 kg
Weight
Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
Damin
24 mm
Housing Connection Diameter
damax
19.2 mm
Connection measurement, inner ring
