INA GE15-UK
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

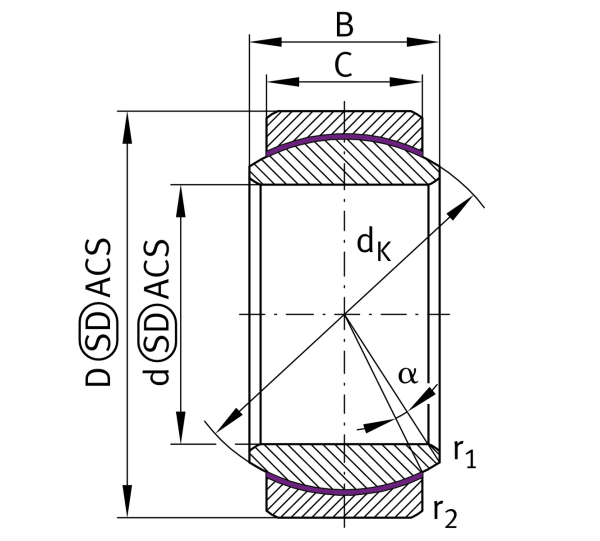

Main Dimensions & Performance Data
d
15 mm
Bore diameter bearing
D
26 mm
Outside diameter bearing
B
12 mm
Width Inner ring
C
9 mm
Width Outer ring
Cr
17,800 N
Basic dynamic load rating, radial
C0r
44,600 N
Basic static load rating, radial
≈m
26.15 g
Weight

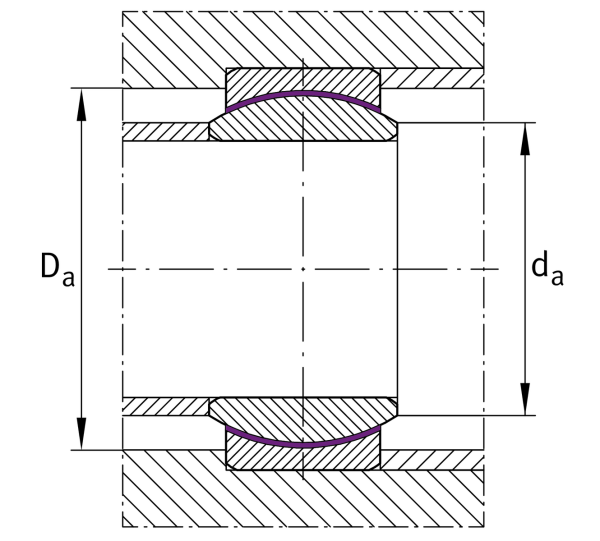

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
Damin
21 mm
Housing Connection Diameter
damax
18.4 mm
Connection measurement, inner ring
