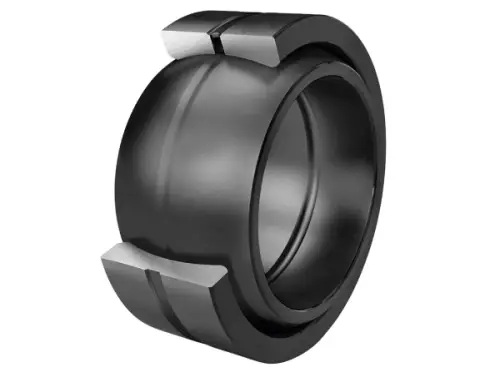

INA GE15-ZO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, inch size, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

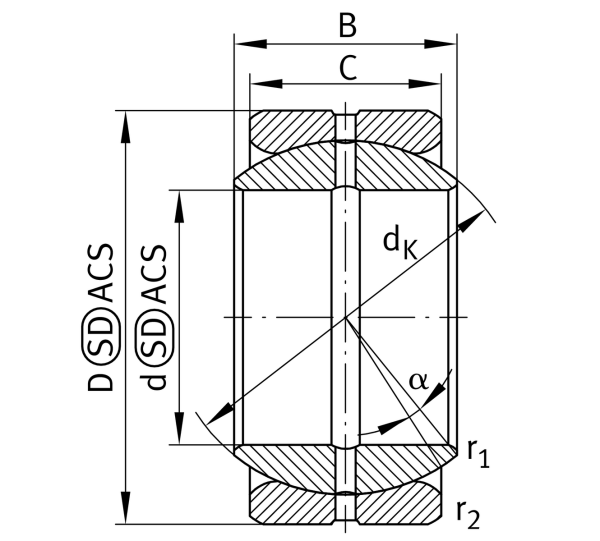

Main Dimensions & Performance Data
d
15.875 mm
Bore diameter bearing
D
26.988 mm
Outside diameter bearing
B
13.894 mm
Width Inner ring
Cr
21,900 N
Basic dynamic load rating, radial
C0r
110,000 N
Basic static load rating, radial
≈m
32 g
Weight

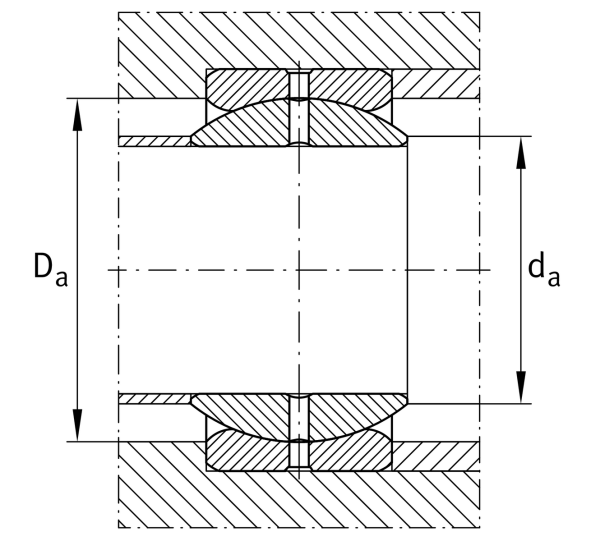

Mounting dimensions
r1smin
0.15 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
18.1 mm
Connection measure Inner ring
Da min
22 mm
Housing Connection Diameter
