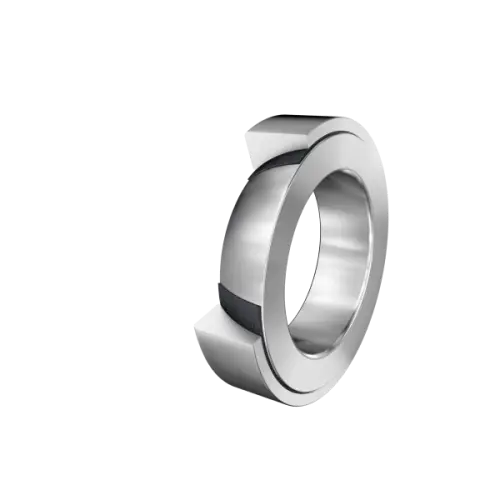

INA GE150-SW
Spherical Plain Bearings

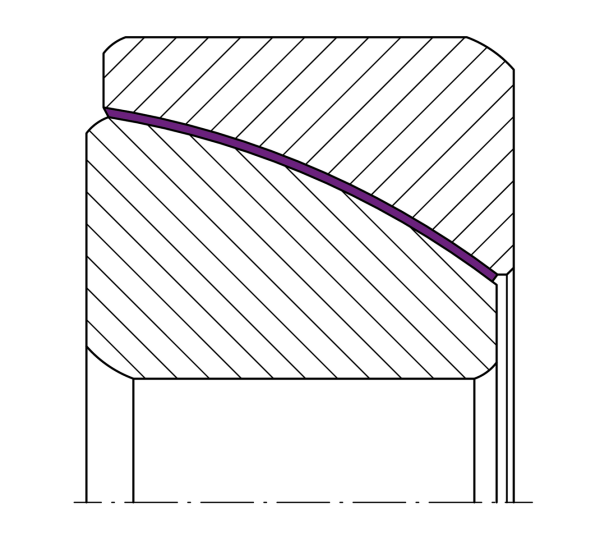

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
150 mm
Bore diameter bearing
D
225 mm
Outside diameter bearing
T
48 mm
Height
B
45 mm
Width Inner ring
Cr
2,300,000 N
Basic dynamic load rating, radial
C0r
3,830,000 N
Basic static load rating, radial
≈m
7.9 kg
Weight
Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
167.1 mm
Connection measure Inner ring
Db min
216 mm
Connection diameter
db max
194 mm
Connection measure Inner ring
Da min
184 mm
Housing Connection Diameter
