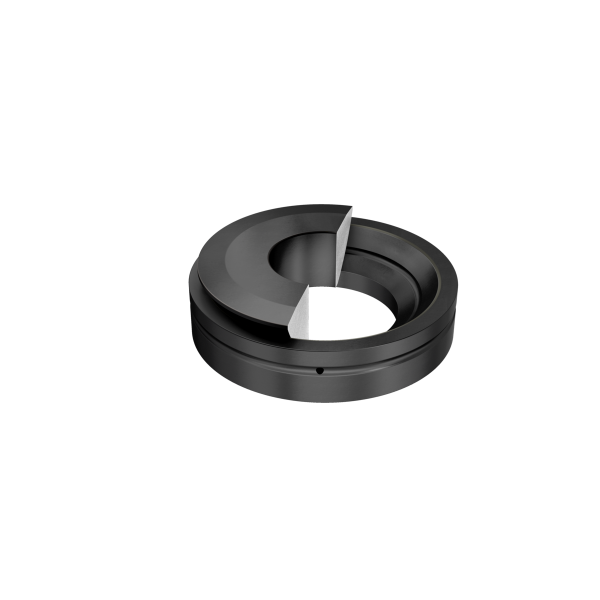

INA GE160-AX
Spherical Plain Bearings
Axial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel
(BRAND)：INA
(Availability)：In Stock

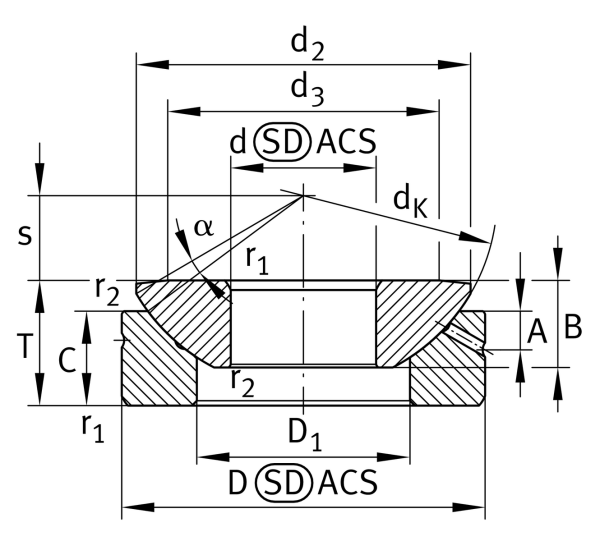

Main Dimensions & Performance Data
d
160 mm
Inner diameter bearing
D
290 mm
Outside diameter bearing
T
77 mm
Height
Ca
2,460,000 N
Basic dynamic load rating, axial
C0a
9,460,000 N
Basic static load rating, axial
≈m
23.64 kg
Weight
Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
213 mm
Connection measure Inner ring
Da min
211 mm
Housing Connection Diameter
