INA GE160-FO
Spherical Plain Bearings
High performance radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel; DIN ISO 12240-1, dimension series G, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

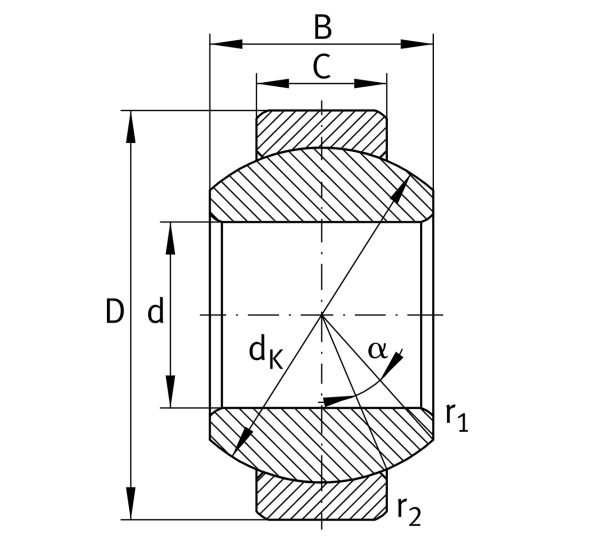

Main Dimensions & Performance Data
d
160 mm
Bore diameter bearing
D
260 mm
Outside diameter bearing
B
135 mm
Width Inner ring
Cr
1,990,000 N
Basic dynamic load rating, radial
C0r
7,650,000 N
Basic static load rating, radial
≈m
24 kg
Weight

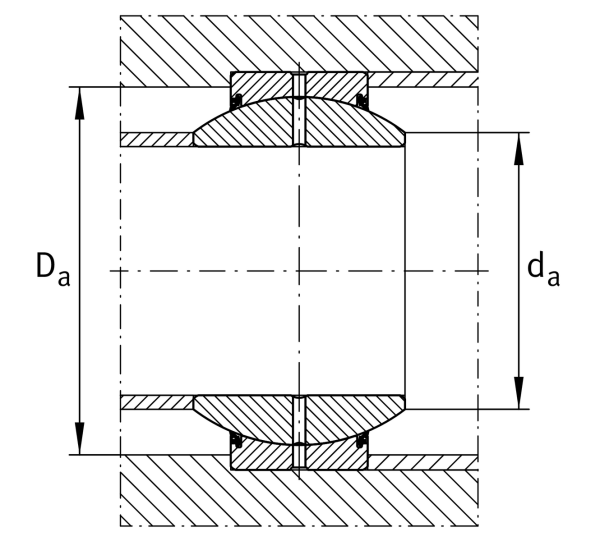

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
da max
180 mm
Connection measure Inner ring
Da min
219 mm
Housing Connection Diameter
