INA GE160-SX
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

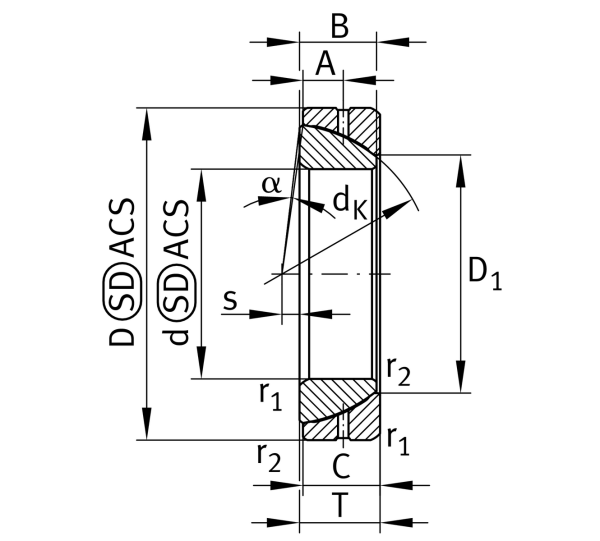

Main Dimensions & Performance Data
d
160 mm
Inner diameter bearing
D
240 mm
Outside diameter bearing
T
51 mm
Height
Cr
1,140,000 N
Basic dynamic load rating, radial
C0r
4,370,000 N
Basic static load rating, radial
≈m
9.4 kg
Weight

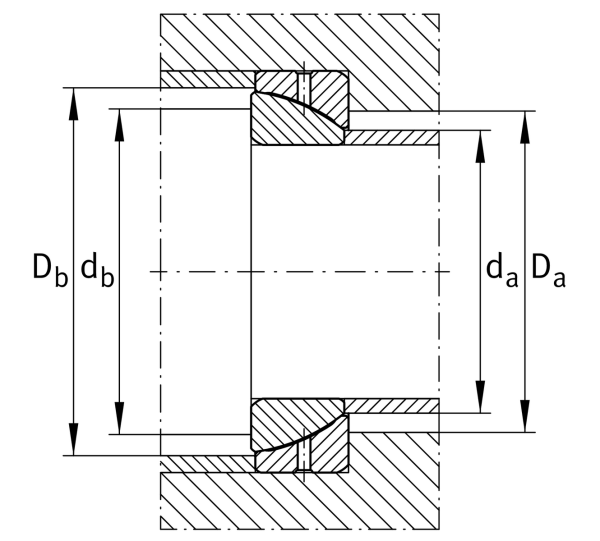

Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
177.7 mm
Connection measure Inner ring
Da min
195 mm
Housing Connection Diameter
Db min
228 mm
Connection diameter
