INA GE17-AX
Spherical Plain Bearings

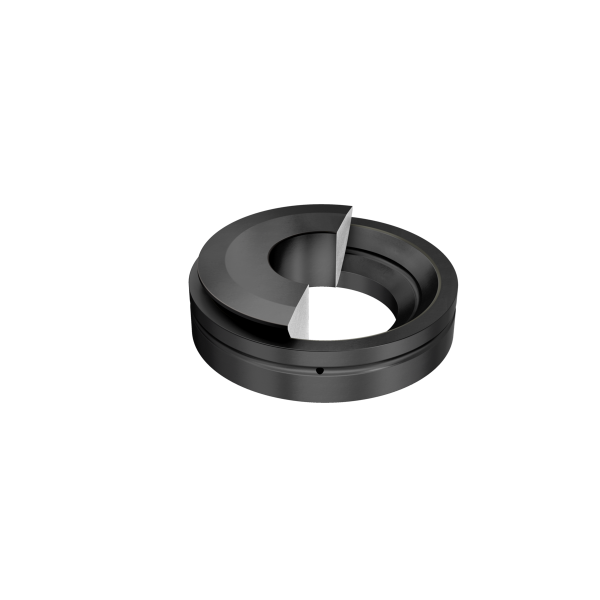

Axial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

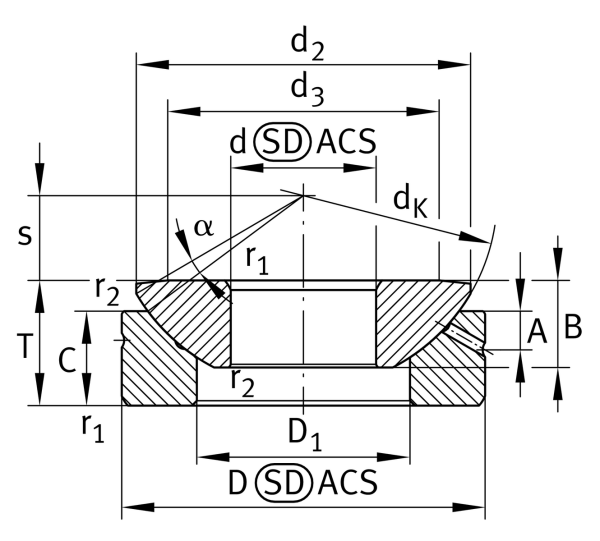

Main Dimensions & Performance Data
d
17 mm
Inner diameter bearing
D
47 mm
Outside diameter bearing
T
16 mm
Height
Ca
77,000 N
Basic dynamic load rating, axial
C0a
296,000 N
Basic static load rating, axial
≈m
0.159 kg
Weight
Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.2 mm
Edge Spacing
da max
34 mm
Connection measure Inner ring
Da min
30.5 mm
Housing Connection Diameter
