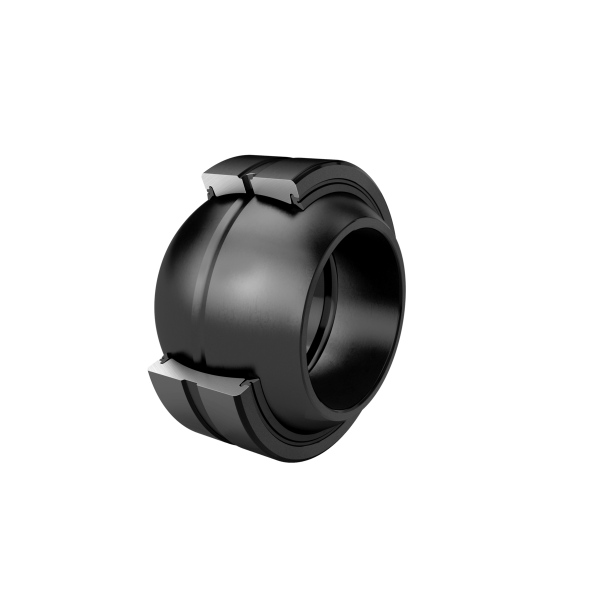

INA GE17-FO-2RS
Spherical Plain Bearings
High performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series G, sealedHigh-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

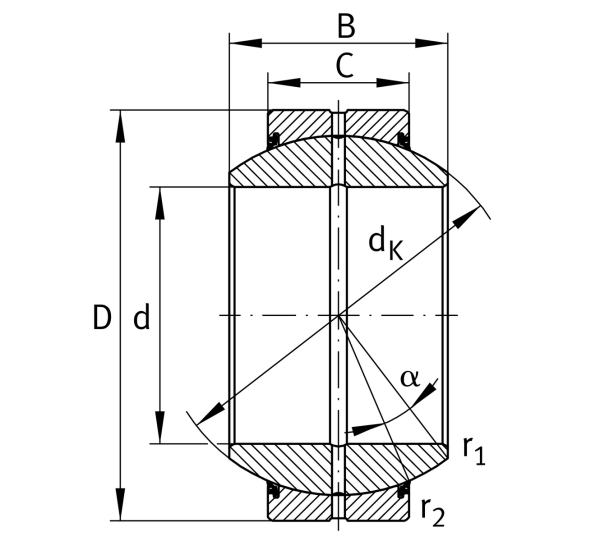

Main Dimensions & Performance Data
d
17 mm
Bore diameter bearing
D
35 mm
Outside diameter bearing
B
20 mm
Width Inner ring
Cr
38,500 N
Basic dynamic load rating, radial
C0r
148,000 N
Basic static load rating, radial
≈m
76.842 g
Weight

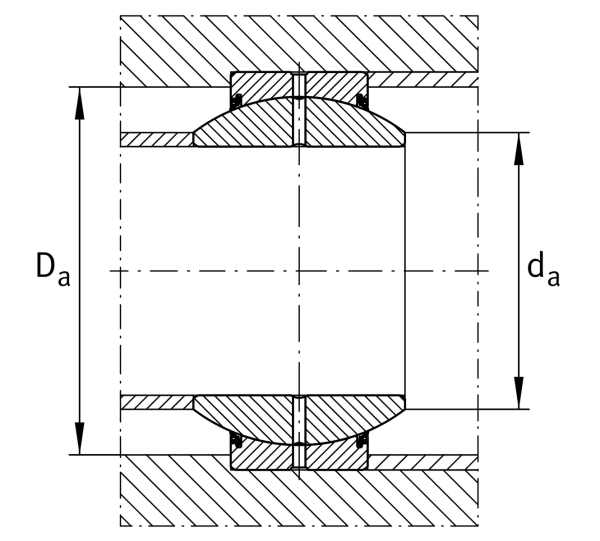

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
21 mm
Connection measure Inner ring
Da min
27.5 mm
Housing Connection Diameter
