INA GE17-XL-KRR-B
Insert Ball Bearings and Belt Tension Pulleys

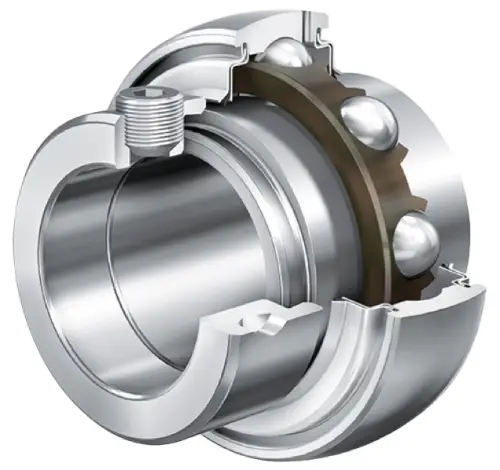

Radial insert ball bearing GE..-XL-KRR-B
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

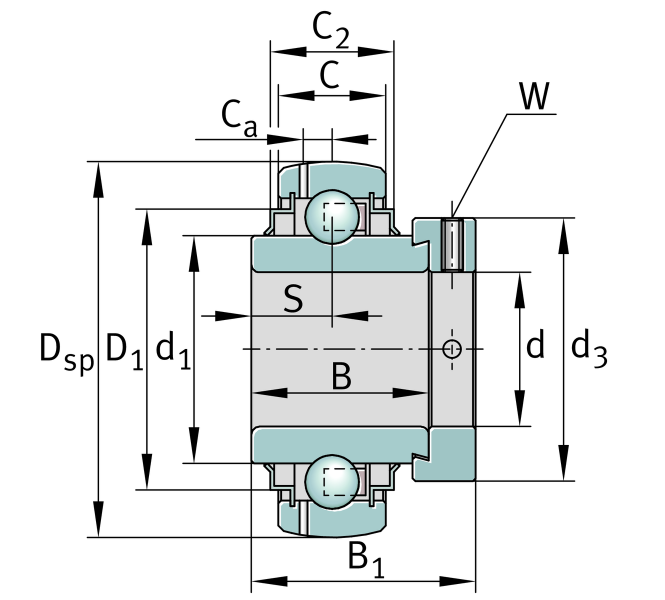

Main Dimensions & Performance Data
d
17 mm
Bore diameter
DSP
40 mm
Outside diameter
B
27.8 mm
Width
Cur
248 N
Fatigue load limit, radial
B1
37.4 mm
Locking collar total width
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
0.12 kg
Weight
