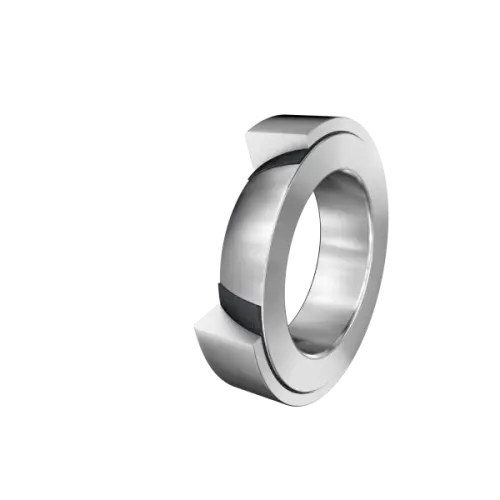

INA GE170-SW
Spherical Plain Bearings

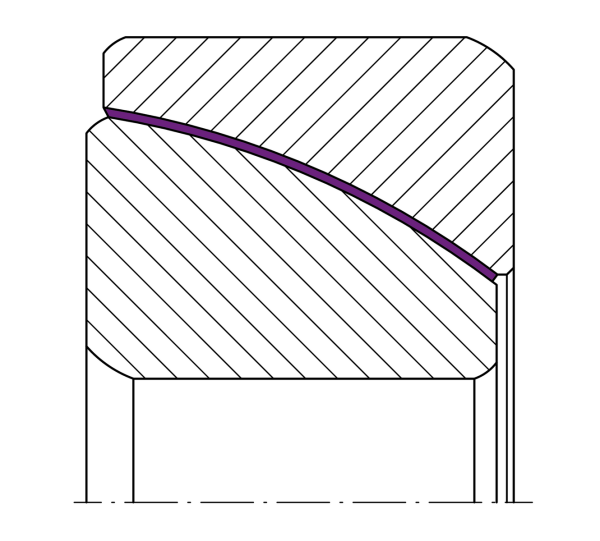

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock

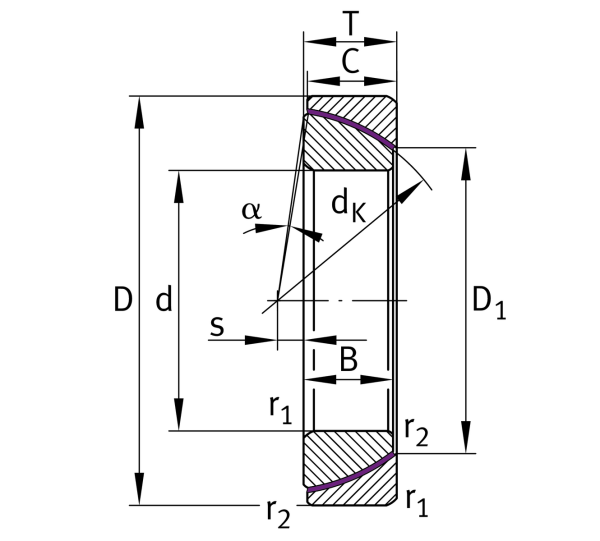

Main Dimensions & Performance Data
d
170 mm
Bore diameter bearing
D
260 mm
Outside diameter bearing
T
57 mm
Height
B
54 mm
Width Inner ring
Cr
3,270,000 N
Basic dynamic load rating, radial
C0r
5,450,000 N
Basic static load rating, radial
≈m
13.1 kg
Weight

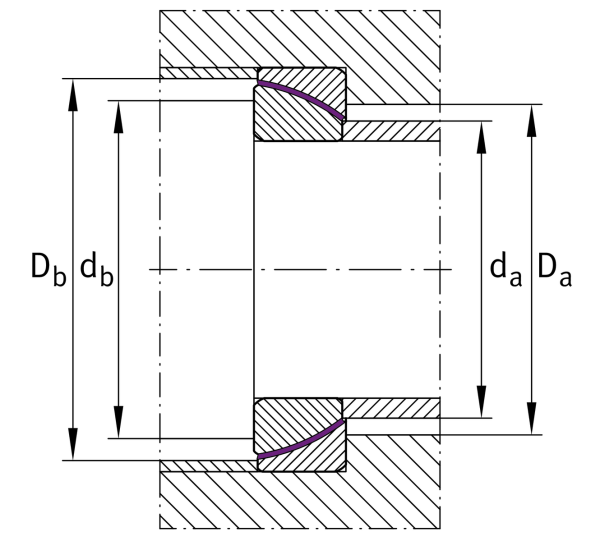

Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
190.4 mm
Connection measure Inner ring
Db min
253 mm
Connection diameter
db max
228 mm
Connection measure Inner ring
Da min
208 mm
Housing Connection Diameter
