INA GE18-PB

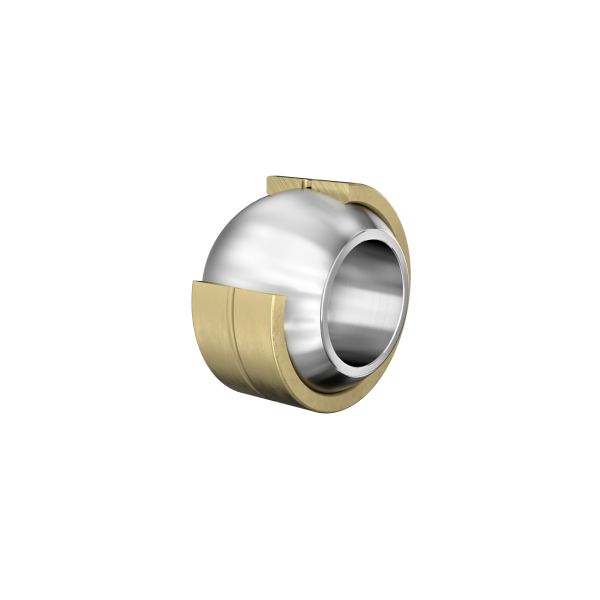

Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-1, dimension series K, open design
(BRAND)：INA
(Availability)：In Stock

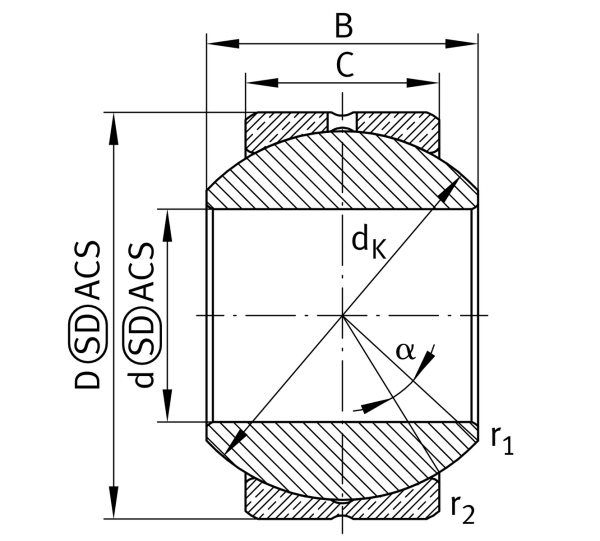

Main Dimensions & Performance Data
d
18 mm
Bore diameter bearing
D
35 mm
Outside diameter bearing
B
23 mm
Width Inner ring
Cr
26,200 N
Basic dynamic load rating, radial
C0r
65,500 N
Basic static load rating, radial
≈m
0.108 kg
Weight

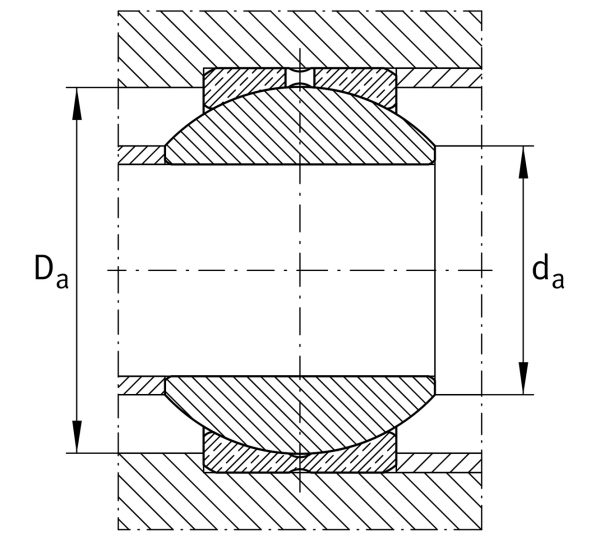

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
21.8 mm
Connection measure Inner ring
Da min
28.5 mm
Housing Connection Diameter
