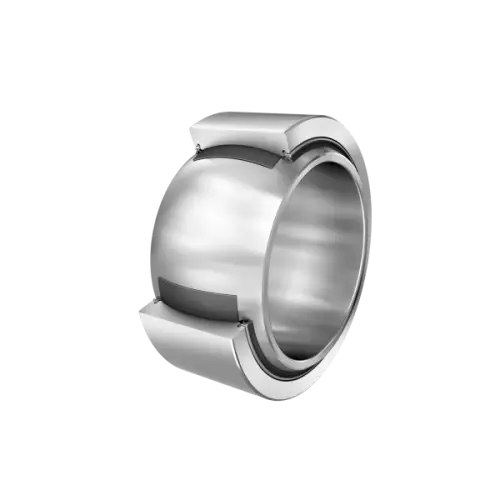

INA GE180-UK-2RS-W7
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, sealed
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

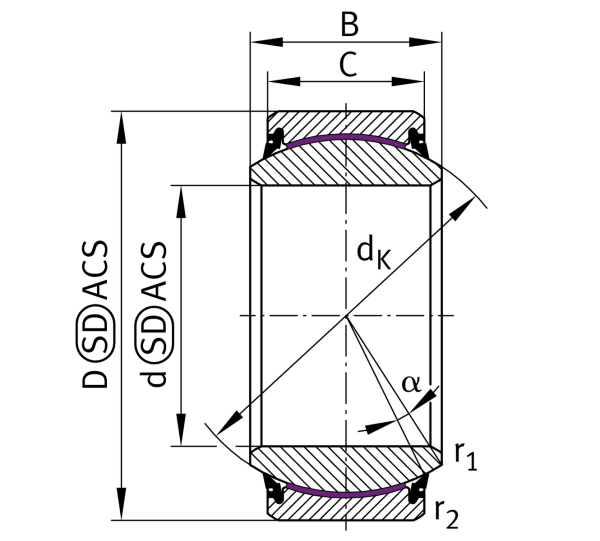

Main Dimensions & Performance Data
d
178.92 mm
Bore diameter bearing
D
260 mm
Outside diameter bearing
B
105 mm
Width Inner ring
C
80 mm
Width Outer ring
Cr
4,320,000 N
Basic dynamic load rating, radial
C0r
7,200,000 N
Basic static load rating, radial
≈m
18.4 kg
Weight

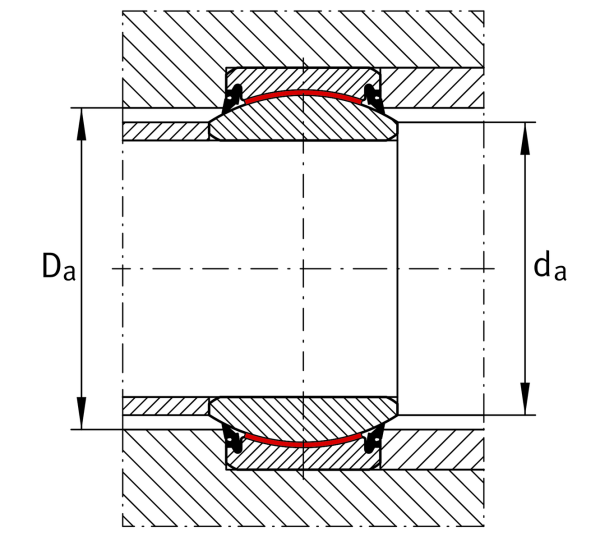

Mounting dimensions
r1smin
1.1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
Damin
219 mm
Housing Connection Diameter
damax
198.9 mm
Connection measurement, inner ring
