INA GE19-ZO-2RS-E
Spherical Plain Bearings

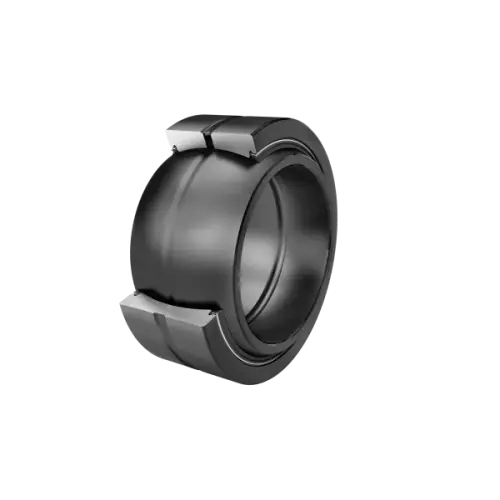

Spherical plain bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

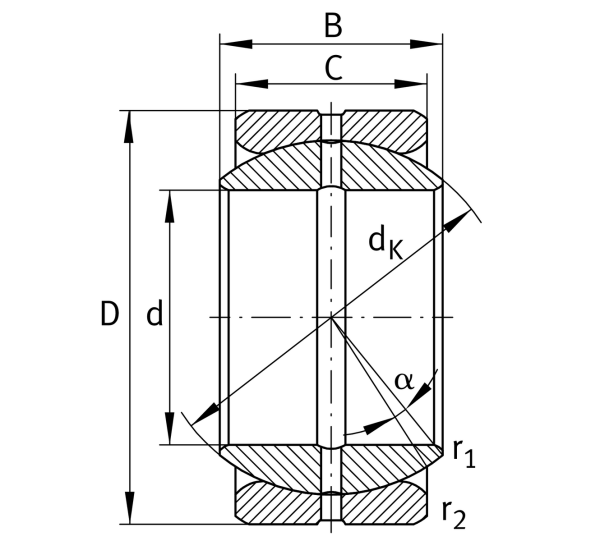

Main Dimensions & Performance Data
d
19.05 mm
Bore diameter bearing
D
31.75 mm
Outside diameter bearing
B
16.662 mm
Width Inner ring
Cr
31,400 N
Basic dynamic load rating, radial
C0r
157,000 N
Basic static load rating, radial
≈m
0.051 kg
Weight

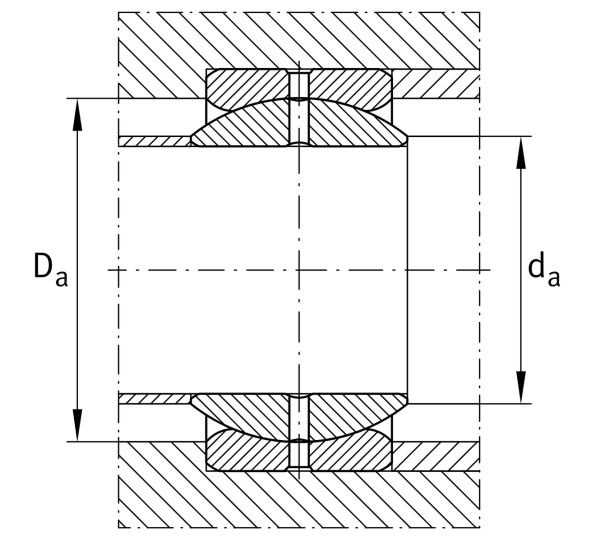

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
21.9 mm
Connection measure Inner ring
Da min
24.5 mm
Housing Connection Diameter
