INA GE190-SW
Spherical Plain Bearings

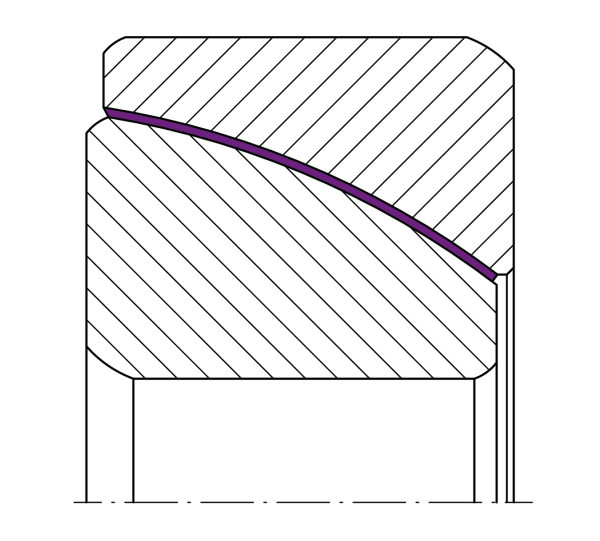

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

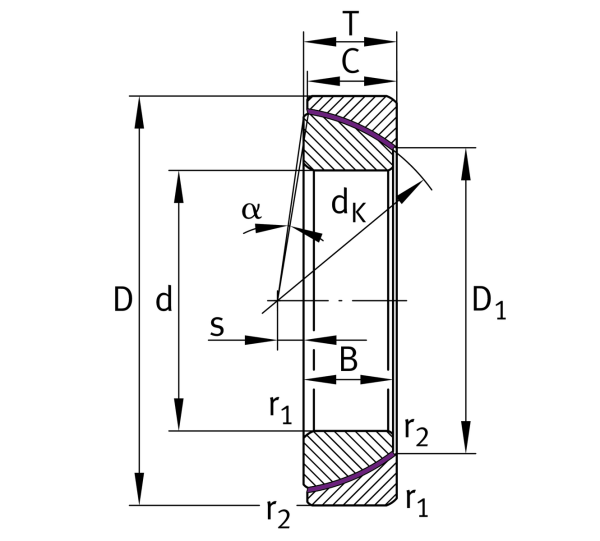

Main Dimensions & Performance Data
d
190 mm
Bore diameter bearing
D
290 mm
Outside diameter bearing
T
64 mm
Height
B
61 mm
Width Inner ring
Cr
4,110,000 N
Basic dynamic load rating, radial
C0r
6,850,000 N
Basic static load rating, radial
≈m
18.4 kg
Weight
Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
207.9 mm
Connection measure Inner ring
Db min
278 mm
Connection diameter
db max
252 mm
Connection measure Inner ring
Da min
226 mm
Housing Connection Diameter
