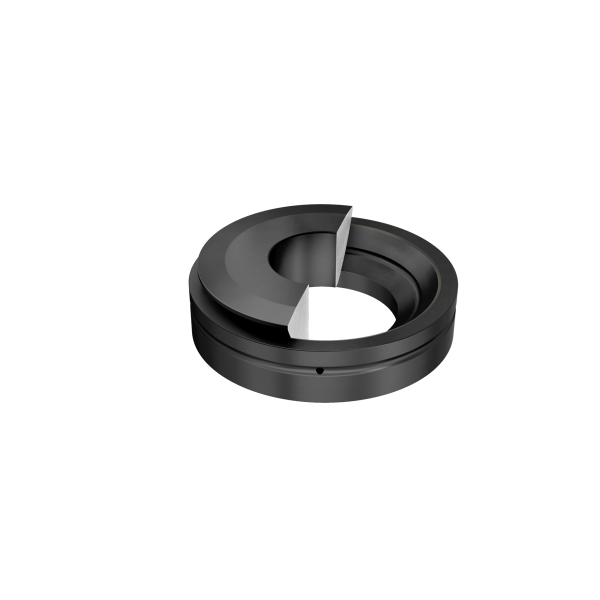

INA GE20-AX
Spherical Plain Bearings
Axial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

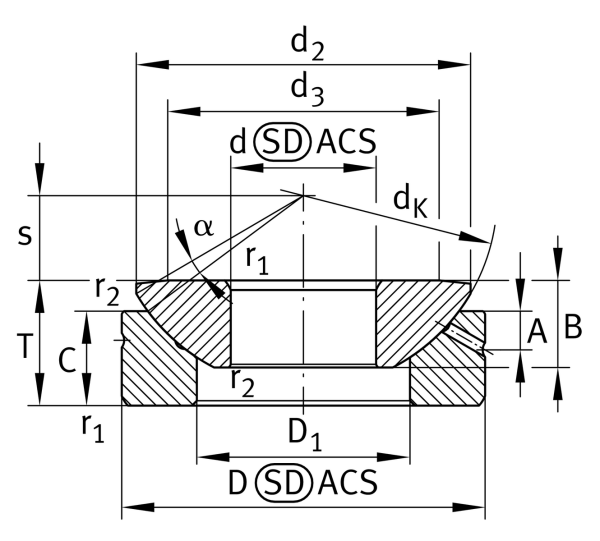

Main Dimensions & Performance Data
d
20 mm
Inner diameter bearing
D
55 mm
Outside diameter bearing
T
20 mm
Height
Ca
97,800 N
Basic dynamic load rating, axial
C0a
376,000 N
Basic static load rating, axial
≈m
0.26 kg
Weight
Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
40 mm
Connection measure Inner ring
Da min
38 mm
Housing Connection Diameter
