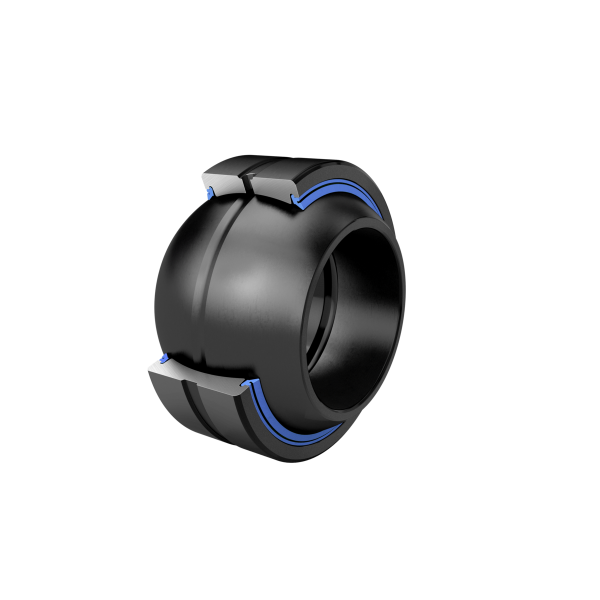

INA GE20-FO-2RS-E
Spherical Plain Bearings
Standard performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series G, sealed
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

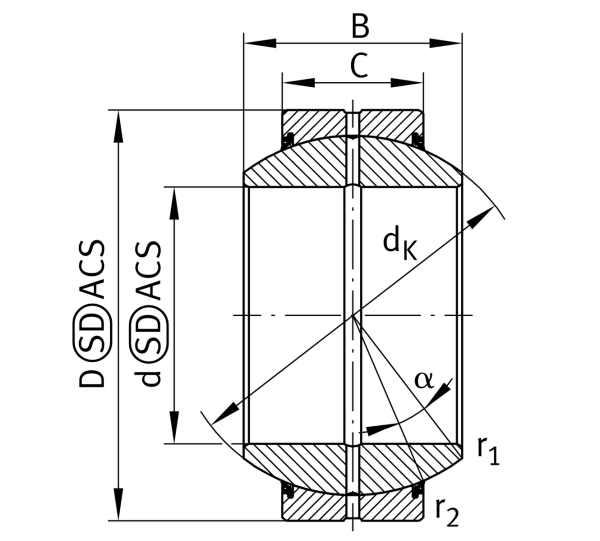

Main Dimensions & Performance Data
d
20 mm
Bore diameter bearing
D
42 mm
Outside diameter bearing
B
25 mm
Width Inner ring
Cr
48,300 N
Basic dynamic load rating, radial
C0r
241,000 N
Basic static load rating, radial
≈m
0.15 kg
Weight

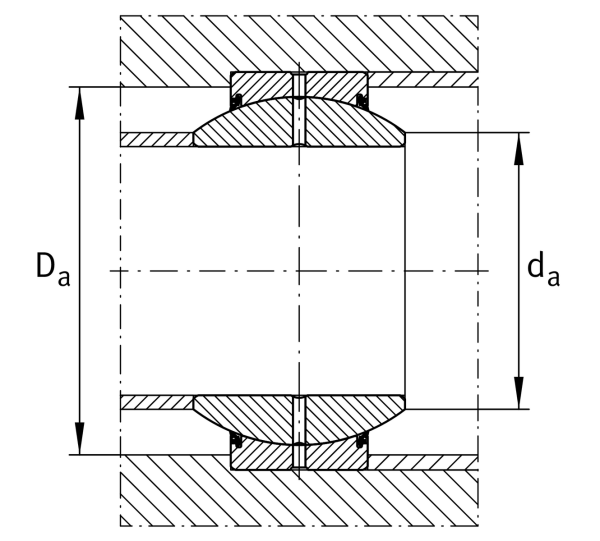

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
25.2 mm
Connection measure Inner ring
Da min
33 mm
Housing Connection Diameter
