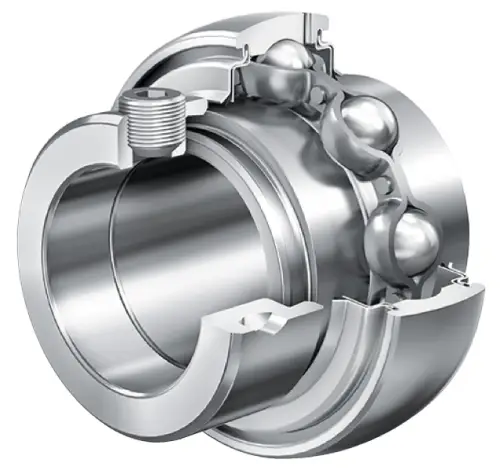

INA GE20-XL-KRR-B-FA164
Insert Ball Bearings and Belt Tension Pulleys
Radial insert ball bearings GE..-KRR-B-FA164, spherical outer ring, location by eccentric locking collar, R seals on both sides, for temperatures up to +250u00B0C
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

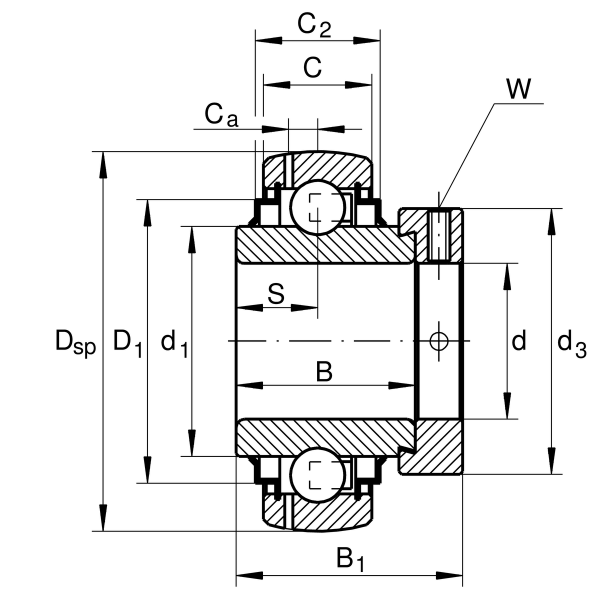

Main Dimensions & Performance Data
d
20 mm
Bore diameter
DSP
47 mm
Outside diameter
B
34.1 mm
Width
Cur
315 N
Fatigue load limit, radial
B1
43.7 mm
Locking collar total width
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
≈m
0.2 kg
Weight
