INA GE200-SX
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
200 mm
Inner diameter bearing
D
310 mm
Outside diameter bearing
T
70 mm
Height
Cr
2,010,000 N
Basic dynamic load rating, radial
C0r
7,740,000 N
Basic static load rating, radial
≈m
23.3 kg
Weight

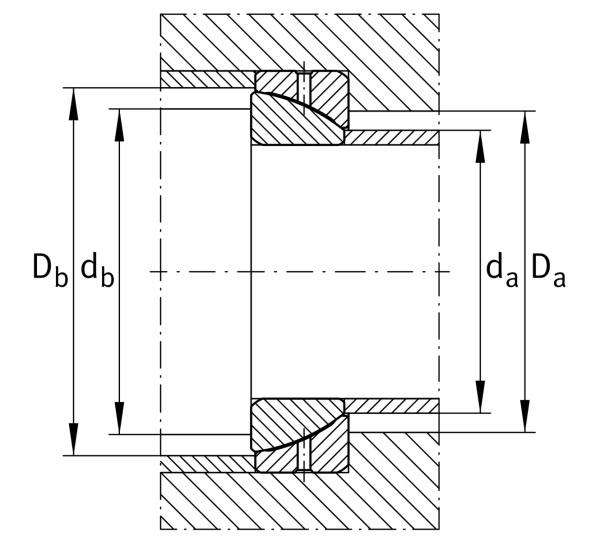

Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
224.2 mm
Connection measure Inner ring
Da min
244 mm
Housing Connection Diameter
Db min
293 mm
Connection diameter
