INA GE22-PB
Spherical Plain Bearings

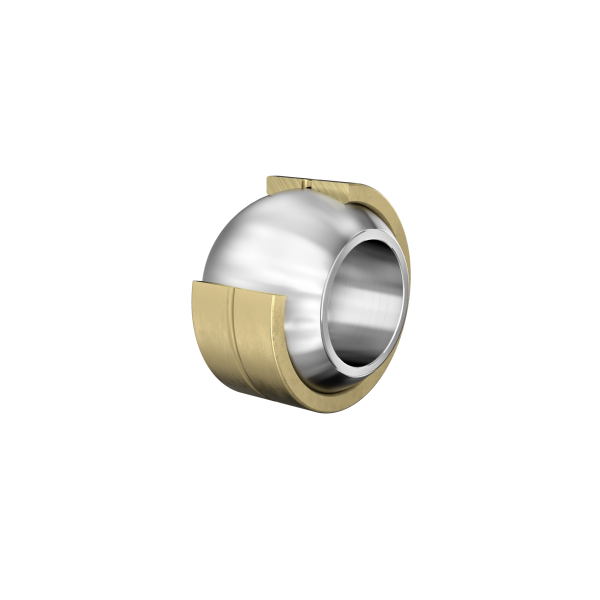

Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-1, dimension series K, open design
(BRAND)：INA
(Availability)：In Stock

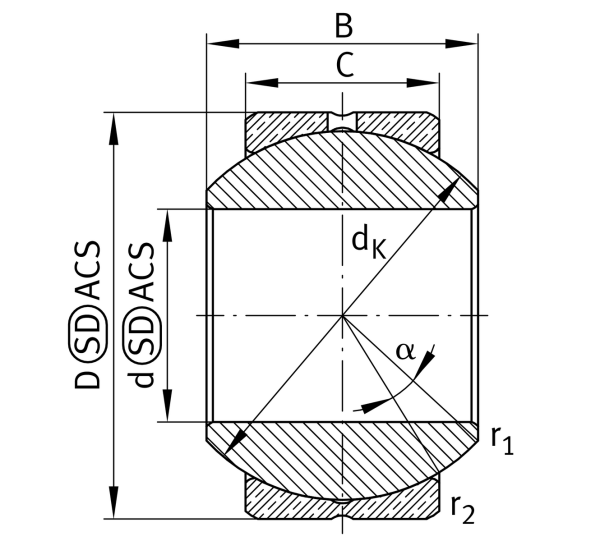

Main Dimensions & Performance Data
d
22 mm
Bore diameter bearing
D
42 mm
Outside diameter bearing
B
28 mm
Width Inner ring
Cr
38,100 N
Basic dynamic load rating, radial
C0r
95,300 N
Basic static load rating, radial
≈m
0.18 kg
Weight

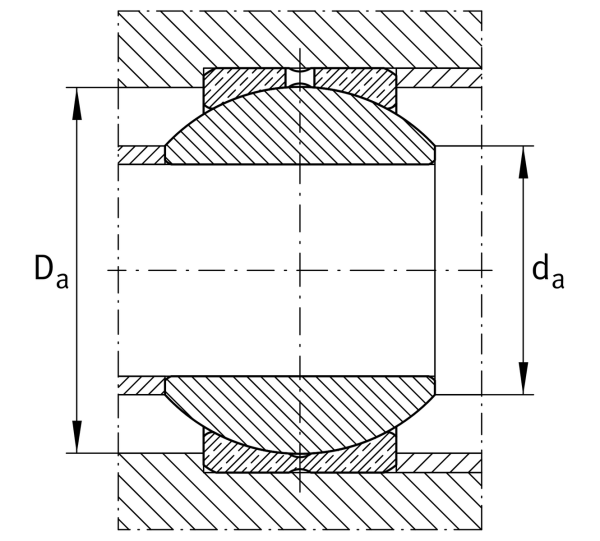

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
25.8 mm
Connection measure Inner ring
Da min
34 mm
Housing Connection Diameter
