INA GE220-AW-XL
Spherical Plain Bearings
Spherical plain bearing GE..-AW-A-XL, axial/oblique, maintenance-free
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
220 mm
Bore diameter bearing
D
370 mm
Outside diameter bearing
T
97 mm
Height
B
82 mm
Width Inner ring
Ca
8,530,000 N
Basic dynamic load rating, axial
C0a
14,200,000 N
Basic static load rating, axial
≈m
45.22 kg
Weight

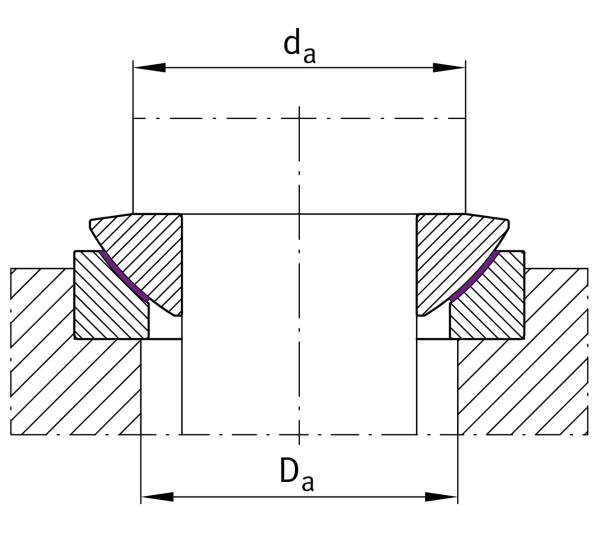

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
289 mm
Connection measure Inner ring
Da min
279 mm
Housing Connection Diameter
