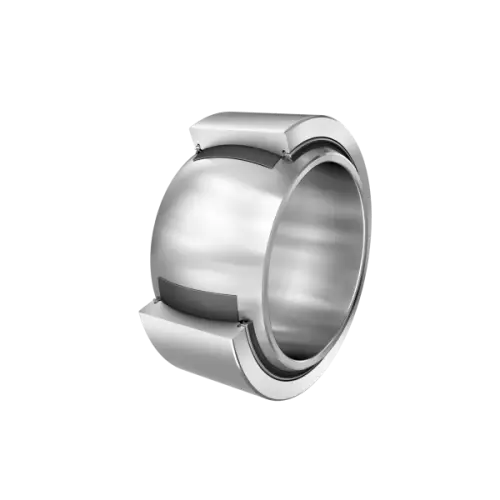

INA GE220-UK-2RS
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, sealed
(BRAND)：INA
(Availability)：In Stock

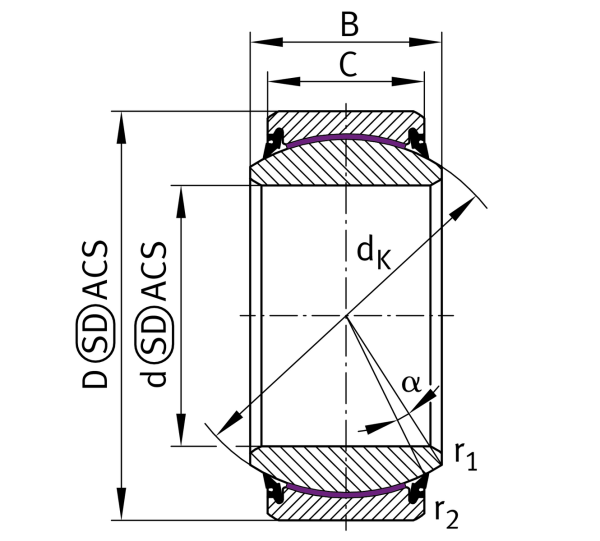

Main Dimensions & Performance Data
d
220 mm
Bore diameter bearing
D
320 mm
Outside diameter bearing
B
135 mm
Width Inner ring
C
100 mm
Width Outer ring
Cr
6,600,000 N
Basic dynamic load rating, radial
C0r
11,000,000 N
Basic static load rating, radial
≈m
32 kg
Weight
Mounting dimensions
r1smin
1.1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
Damin
267 mm
Housing Connection Diameter
damax
239.5 mm
Connection measurement, inner ring
