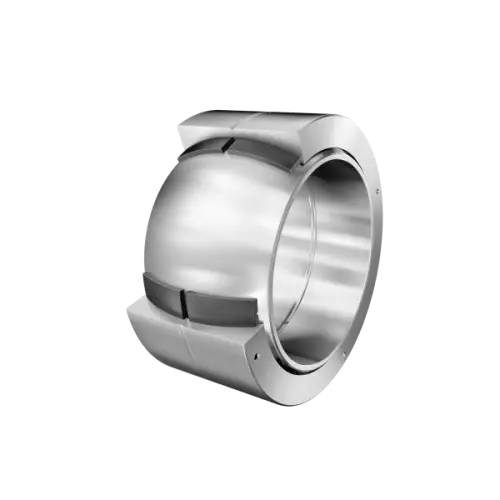

INA GE240-HF
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding contact surface: GFK / Durotect CMT, DIN ISO 12240-1, dimension series H, open design
(BRAND)：INA
(Availability)：In Stock

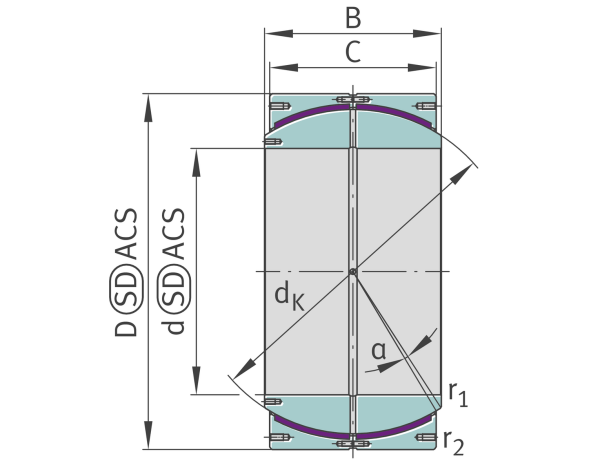

Main Dimensions & Performance Data
d
240 mm
Bore diameter bearing
D
340 mm
Outside diameter bearing
B
170 mm
Width Inner ring
C
162 mm
Width Outer ring
Cr
3,550,000 N
Basic dynamic load rating, radial
C0r
5,400,000 N
Basic static load rating, radial
≈m
53.5 kg
Weight

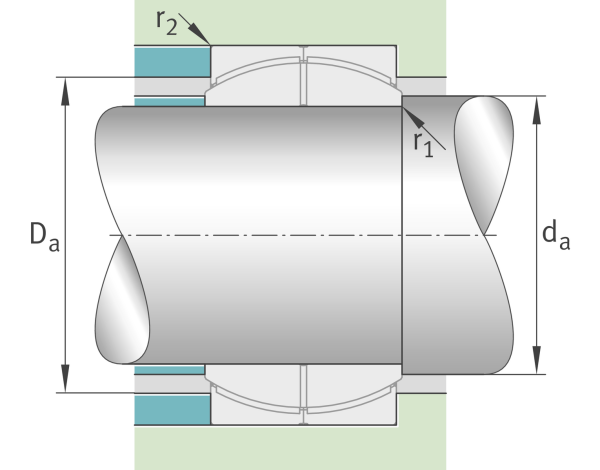

Mounting dimensions
r1smin
1.1 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
Damin
289 mm
Housing Connection Diameter
damax
259 mm
Connection measurement, inner ring
