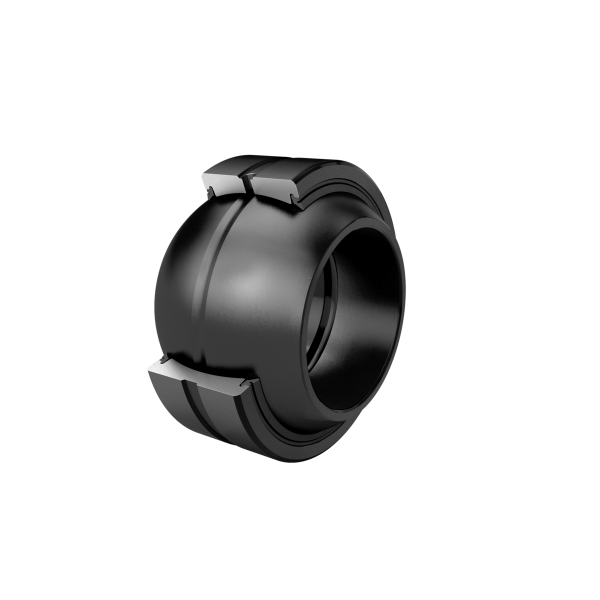

INA GE25-FO-2RS
Spherical Plain Bearings
High performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series G, sealedHigh-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock

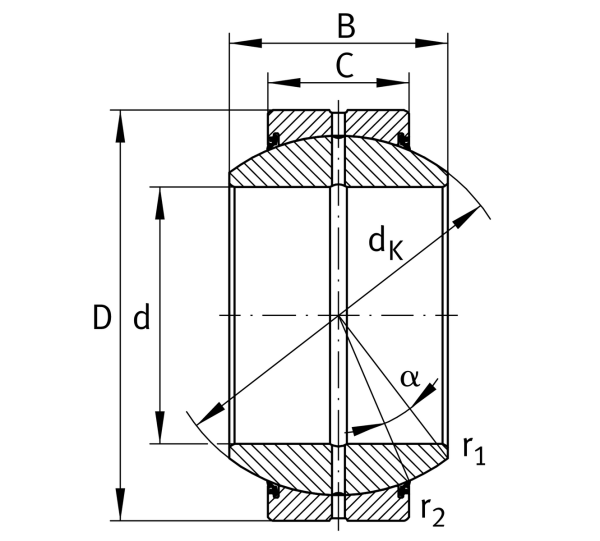

Main Dimensions & Performance Data
d
25 mm
Bore diameter bearing
D
47 mm
Outside diameter bearing
B
28 mm
Width Inner ring
Cr
81,000 N
Basic dynamic load rating, radial
C0r
311,000 N
Basic static load rating, radial
≈m
0.19 kg
Weight

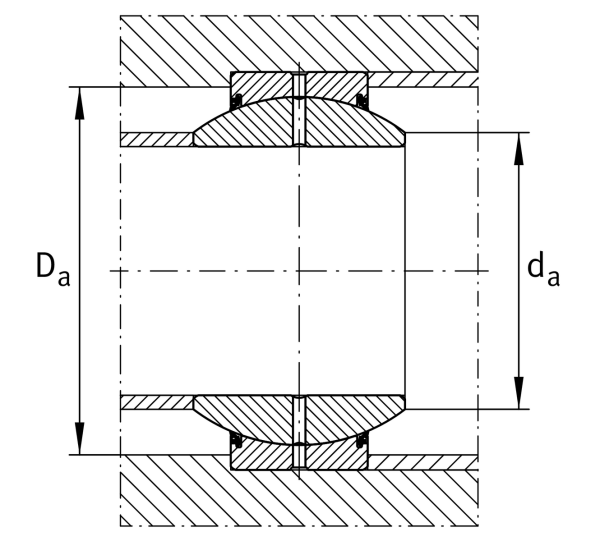

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
29.5 mm
Connection measure Inner ring
Da min
38 mm
Housing Connection Diameter
