INA GE25-SX
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

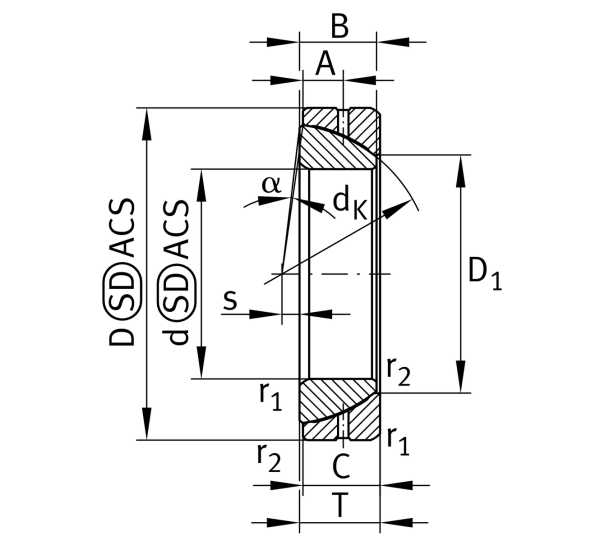

Main Dimensions & Performance Data
d
25 mm
Inner diameter bearing
D
47 mm
Outside diameter bearing
T
15 mm
Height
Cr
62,200 N
Basic dynamic load rating, radial
C0r
239,000 N
Basic static load rating, radial
≈m
0.135 kg
Weight

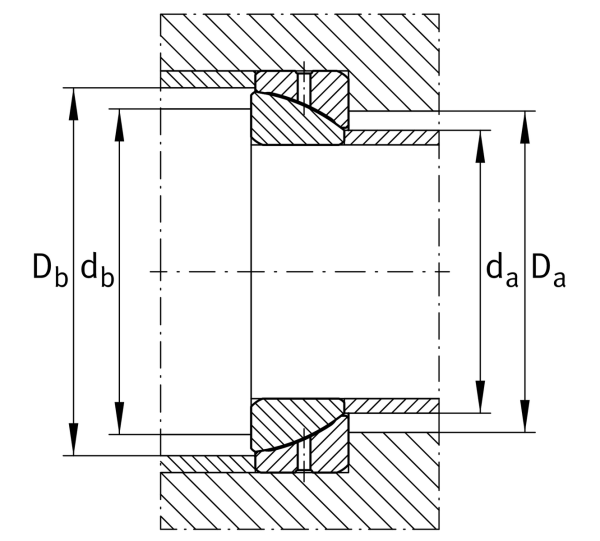

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
30.1 mm
Connection measure Inner ring
Da min
34 mm
Housing Connection Diameter
Db min
43 mm
Connection diameter
