INA GE25-XL-KRR-B
Insert Ball Bearings and Belt Tension Pulleys

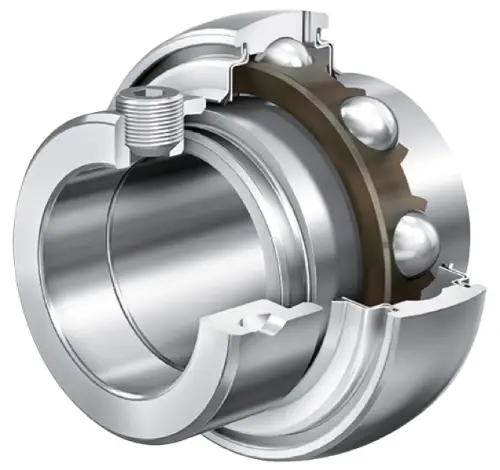

Radial insert ball bearing GE..-XL-KRR-B
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

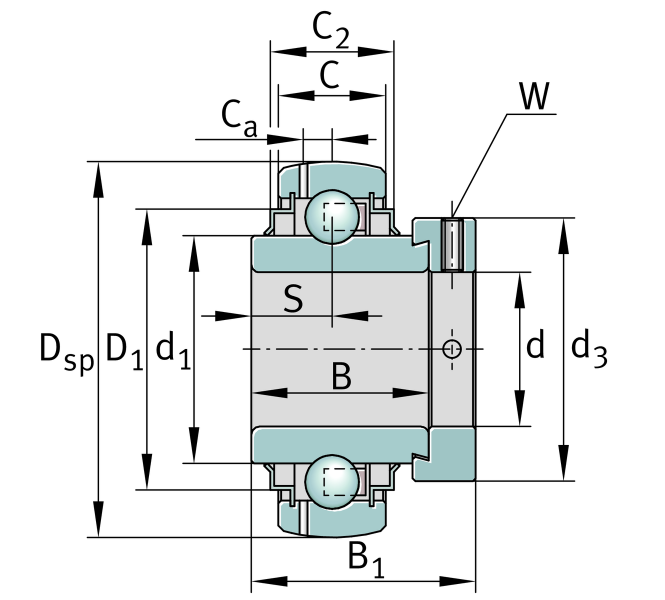

Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
34.9 mm
Width
Cur
370 N
Fatigue load limit, radial
B1
44.5 mm
Locking collar total width
Cr
14,900 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
246.13 g
Weight
